welding laser system / pulsed / continuous wave / fiber
FiberStar 8700 series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
welding laser system welding laser system - FiberStar 8700 series
{{requestButtons}}

Characteristics

  • Operational mode:

    pulsed, continuous wave

  • Technology :

    fiber

  • Spectrum:

    visible

  • Applications:

    for welding

  • Wavelength:

    1,070 nm

  • Power:

    150 W, 300 W, 450 W

Description

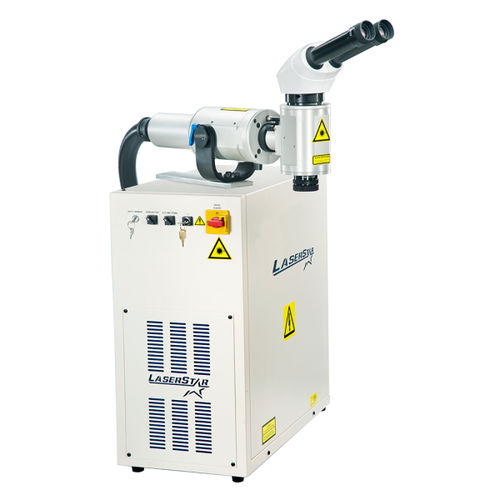

FIBER LASER WELDING INTEGRATOR KIT
8700 Series
FiberStar Integrator Kit
Class 4 System
(CW and/or Pulse Fiber Engine Output)

FiberStar Integrator Kit Systems offer state-of-the-art laser resonator technology which provides high peak power, optimal performance & throughput, higher up-time, enhanced electrical efficiency, and a space saving air cooled design. Solid state diodes provide instantaneous power with no “warm up time” required.
The laser source is a permanently sealed design that protects against dust and dirt, does not require adjustment, has no consumable parts, and requires no maintenance. These features help to ensure the FiberStar systems performance resulting in stable, consistent material processing for years of operation.
Fiber laser welding technology produces a sharp, focused light beam that consistently melts a very small area of metal. The benefit of the technology is that very little heat is generated at the weld point allowing users to easily laser weld > 0.025mm from complex, heat sensitive, intricate parts while providing unparalleled parameter flexibility from 0 – 100% duty cycle.
The FiberStar Integrator Kit is an excellent solution when considering a flashlamp based laser delivery system replacement or new material process system. We offer the necessary Integration Consultation Services to ensure your laser system conversion is a smooth process. The FiberStar can interface with existing motion control packages and manager the operator interface process for semi or automatic material processing systems. Digital vision or manual stereo microscope viewing systems versions are available.
