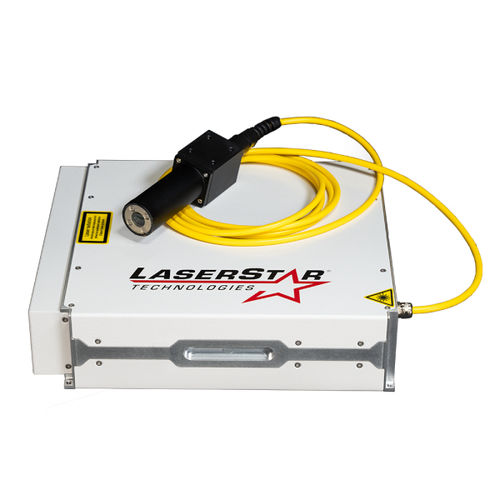

Pulsed laser source 705-3775-60-M3fibermultiple-wavelengthmarking
Add to favorites
Compare this product
Characteristics
- Operational mode
- pulsed
- Technology
- fiber
- Spectrum
- multiple-wavelength
- Applications
- marking, engraving, cutting, drilling, industrial
- Other characteristics
- compact, adjustable, air-cooled, MOPA
- Power
350 W
- Wavelength
1,060 nm, 1,080 nm
Description
The air-cooled 60W MOPA Puise Fiber Laser Source is designed for a wide range of industrial applications, including marking, engraving, cutting, welding, drilling, cleaning, and texturing.
Typical Applications:
• High-quality surface marking without material removal
• Black &white marking on aluminum
• Color marking on stainless steel & titanium
• Précision deep engraving on alloys & polymers
• Surface texturing & treatment
• Précision cutting & drilling
Highlights:
• Average Power: 60W for reliable performance
• Beam Quality: < 1.8 M2 for précision applications
• Max. Puise Energy: 1.5mJ
• Puise Duration: Adjustable from 2 - 500ns
• Répétition Rate: 1 - 3000 kHz
• Beam Diameter: 7mm (±1 mm)
• Fast Laser Switching: < 20pm response time
• Supply Voltage: 24V (DC)
• Cooling System: Air-cooled, modular laser source
• Technology: Anti-reflection isolator for improved stability
• Compact Design: 317mm x 260mm x 80mm
• Lightweight: Net weight approx. 18 Ibs (8kg)
• Cable Length: 3m for flexible installation
