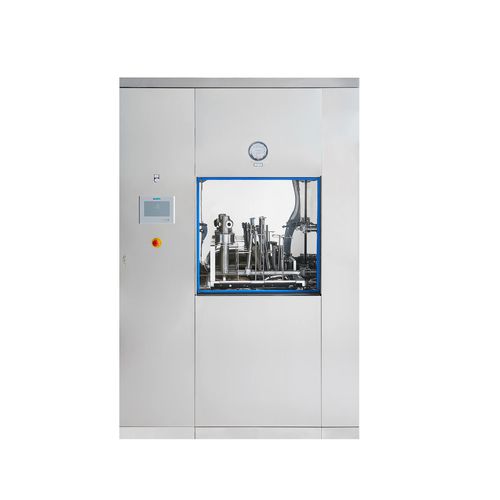

Water washing machine UCW

solventsteamautomatic

The UCW equipment has been specifically designed to process wash, disinfect and dry instruments, glassware, filling machine components and large containers (IBC), etc. “Standard” and custom programmes for every need. he equipment process is developed by our Automation Department, according to the current codes/standards and the type of product being processed. Products go from dirty to ready to be sterilised, by means of a pre-wash, chemical and/or clean steam-added wash, rinse with PW or WFI (recirculation or direct flow) and a final HEPA 13-filtered hot air drying phase. Whilst also keeping the water TOC level, conductivity and pH level under control. During the product wash phase, chemicals and/or clean steam can be injected by means of a precise and reliable system, in order to improve the equipment’s cleaning action. • Single-walled square or rectangular chamber in 316L or 316Ti stainless steel. • Innovative central pumping/draining sump in 316L or 316Ti stainless steel. • Piping and air ducts made entirely from 316L stainless steel with sanitary fittings (tri-clamp ferrules and hygienic flanges). • 3D (dead leg)-compliant along the entire piping system and a minimum inclination of 3° of the same towards the floor drain. • Any surfaces that come into contact with the product are mechanically polished to a roughness level of less than 0.35 micron. • Rounded internal chamber corners to ensure a perfect clean. • Manual folding chamber doors or vertical/horizontal automatic sliding doors (316L or 316Ti stainless steel door with a HST tempered glass inspection window). • Chamber door oil seal made of silicone rubber.
