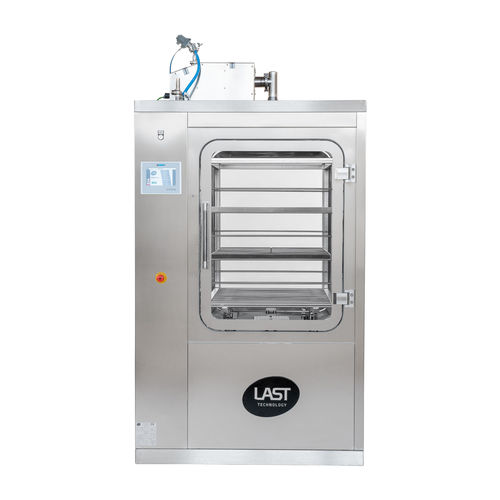

Hydrogen peroxyde decontamination unit DPB

for the pharmaceutical industrystationary

The DPB equipment has been designed to decontaminate thermolabile materials, such as plastic syringe trays, electronic components, pre-sterilised material, disinfectants, etc. Predefined and “custom” programmes for every need. The equipment process is developed by our Automation Department, according to the current regulations/standards and the type of product being decontaminated. A product that must be moved from a dirty environment to a clean one, and vice versa, by means of a hydrogen peroxide (H2O2) decontamination cycle. The process has been developed to ensure a homogeneous gas distribution and reduced throughput times. • Square or rectangular washing chamber and hatches (doors). • AISI 316 L chamber and doors. • All the edges are rounded to ensure optimum surface hygiene. • The “U”-shaped reinforcements welded on the outside of the chamber ensure its stability. • The internal ventilation system ensures that the hydrogen peroxide is optimally distributed on the load. • Catalytic chamber degassing system. • The pass box chamber is positioned on a tubular-type base to evenly distribute the weight on the floor. • The loading trolley-inserting and removing guides are positioned on the bottom of the chamber. These guides are also height-adjustable. • Two 1.5” tri-clamp ferrules are welded to the chamber for validation purposes. • All of the chambers internal surfaces are mechanically polished and then subjected to chemical degreasing, pickling and passivation treatments. Surface finish: ≤ 0.35 micron. • Above-floor or recessed chamber installation possible for large volumes. • The unloading door has been designed to be connected to the walls of the clean chambers
