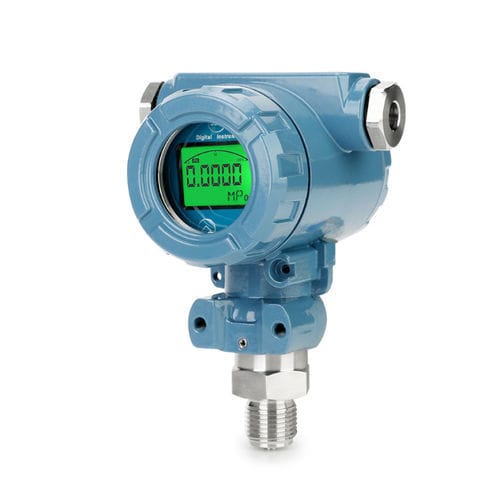

Relative pressure transducer LFT6200
absolutesilicon4-20 mA

Relative pressure transducer - LFT6200 - LEFOO Group - absolute / silicon / 4-20 mA
Relative pressure transducer - LFT6200 - LEFOO Group - absolute / silicon / 4-20 mA
Relative pressure transducer - LFT6200 - LEFOO Group - absolute / silicon / 4-20 mA - image - 2
Relative pressure transducer - LFT6200 - LEFOO Group - absolute / silicon / 4-20 mA - image - 3
Add to favorites
Compare this product

Characteristics

Pressure type
relative, absolute
Technology
silicon
Output
4-20 mA, 0-10 V, HART, RS-485
Electrical connection
terminal block
Supply voltage
12VDC, 24VDC, 36VDC
Mounting
threaded
Process connection
G 1/2, G 1/4, NPT 1/4, NPT 1/2, M20 x 1,5
Fluid
for gas, for liquids
Material
stainless steel, aluminum
Protection level
IP67
Applications
process
Other characteristics
CE
Pressure range

Min.: -1 bar
(-14.5 psi)

Max.: 600 bar
(8,702.26 psi)

Precision

0.25 %

Description

Explosion-proof Pressure Transmitter LFT6200 is an isolated explosion-proof product with high cost performance. Widely used in gas and liquid pressure measuring, such as water, oil, mildly corrosive liquids and gases, etc. The product adopts 304 stainless steel pressure head, the premium pressure sensing cell is selected from international famous brands, and the special V/I conversion circuit can easily calibrate its zero point and full scale. This product has the advantages of small drift, stable performance, reliable quality and reasonable structure. Features * Anti-pressure shock buffer joint * Various pressure ranges and signal outputs * Exdllc T6 Gb explosion-proof * Configurable live display * Various pressure ports * Multi output signal：4-20mA+Hart, 0-10VDC, RS-485

Catalogs

No catalogs are available for this product.

See all of LEFOO Group‘s catalogs
