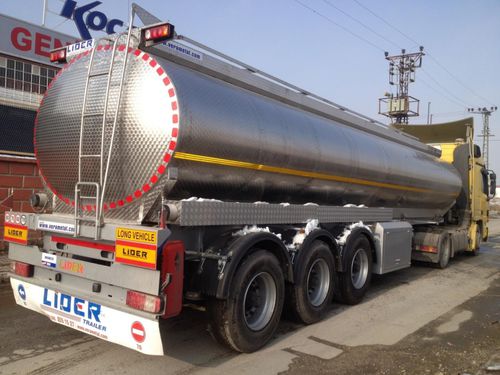

Semi-tanker trailer

3-axlefor water tanks

45.000 LT Water Tanker Trailer Technical Properties ; Chassis: Produced by gas welding machines from high resistance steel ST52 meterials as *I* section in resistance calculation excessive loading has been considered with robotic welding machine. King Pin: Produced with wrought iron (42 cr Mo4). Thats high resistance to tension and breaking off compliance with 2’’ SAE/DIN norms and provides easy replacement posibility with screw connections. Axles: 3 X 12000 kg carriying capacity. Turkish Mark automatic brake adjustment lever and compliance with european standards. Off drum brake systems. Brake System: Designed according into the european standards are used on equipped with automatic brake adjustment brake chambers (30 cylinder), Brake Disk (394x210 mm) axle brakes system. There are two pieces of replecable protective brake sockets. Rear Axles 30x30 Service emergency bellows. Mechanical/Suspension Systems: Air Suspension Systems are using with EU standarts. Counterfort: They are “Lider” brand with double revolutions mechanic pillars with 24 tons carriying capacity. Wheel and Rim: 385/60 R22,5 tyres (6 Units) Goodyear or Pirelli Brand. 11,75 x 22,5 rim (6 Units) Tank Volume: 45.000 LT - 60 lt Cr –Ni water tank Produced by stanless stell.
