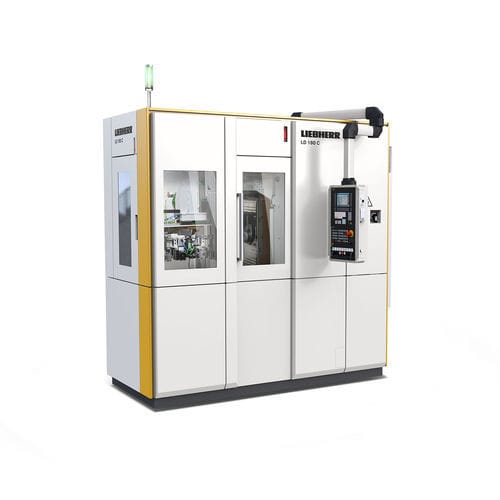

Gear chamfering machine LD 180 C

electric

After chamfering with the patented ChamferCut technology, no additional machining is necessary. There is no need for a second cut, which is often required during the deformation-based deburring process for the removal of build-up material. With the chamfering process, the exact chamfer form is produced. In contrast to deformation-based processes, the material structure is not affected. An optimal starting point is created for the subsequent finishing of hardened gears, particularly gear honing. The quality of such chamfers defines a new standard – with maximum repetitive accuracy. Advantages • The ChamferCut process • Very precise chamfer geometry • Premium chamfer quality and reproducibility • No bulging or material deformation • Standard tooth-root chamfering • Established process in gear production • Very long tool life • ChamferCut tools can be re-sharpened approx. 20 times easily and cost-effectively • Lower tool costs compared to alternative processes • Short amortization period due to low tool costs • Applications for gears with module 0.8-42 mm • 2nd cut not needed for gear hobbing - longer tool life for the hobbing tool • Short setup time Chamfering machines LD 180 C and LD 280 С The LD 180 C and LD 280 C are compact stand-alone machines whose main task is the chamfering of gears. They can be integrated easily, quickly and cost-effectively into all existing production/manufacturing lines.
