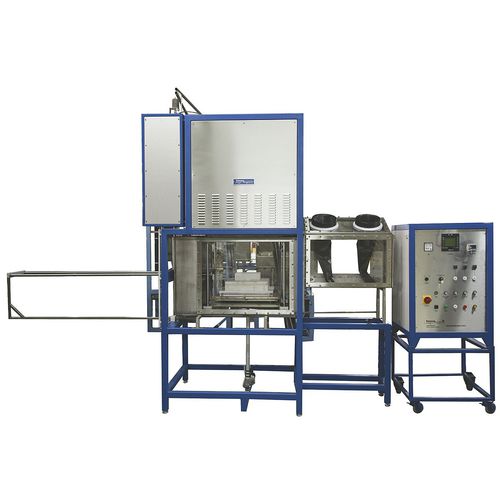

Chamber furnace FBV

sinteringcalcinationelectric resistance

calcination, reduction, sintering For production and research of luminescent powders (phosphors) Other possible areas of use could be sintering or calcining of oxydic or non-oxydic ceramics. The most important characteristics: Electrically heated and stone and fiber insulated furnace Useful chamber volume approx. 27 l Heating by 12 U-shaped tungsten heaters at 4 sides Heating power approx. 24 kW gastight chamber Gas feeding device with mass flow controllers (Ar, H2, N2) Burning-off device with flame supervision Safety package Gas warning system Transferbox + charging device with controlled atmosphere We make it possible Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications. We will do everything to satisfy your wishes. Possible standardized options Different controller systems Emergency gas flushing device Emergency water cooling Process Guiding Software Circulation cooler Condensate trap MoSI2 und molybdenum heating elements
