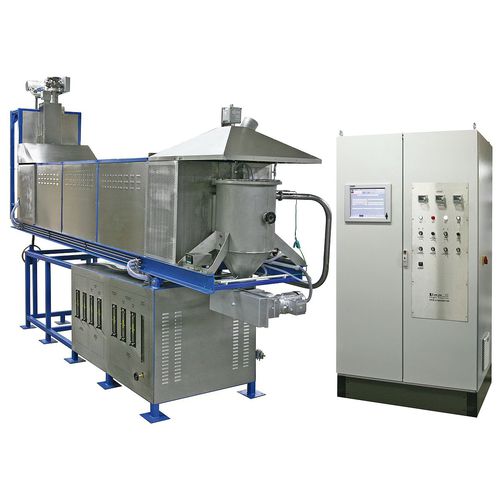

Thermal furnace FDHK

pyrolysisdryingashing

ashing, calcination, oxydation, pyrolysis, reduction, thermal recycling Reduction of uranium oxide (e. g. Triuranium octoxide (U3O8) to uranium dioxide (UO2)) in hydrogen atmosphere. Other possible applications are: calcination, drying, heat treatment of bulk materials (powder, granules, …) active carbon production pyrolysis (e. g. waste, biomass) Research and Development The most important characteristics fully-automated operation industrial rotary tube furnace 3 heated zones 2200 mm heated length 140 mm tube diameter 35 kW max. heating power gastight adjustable furnace inclination 0 – 10 ° and speed up to 30 min-1 easy to handle resistance heated with FeCrAl-heating elements Tube breakage monitoring Metallic insert tube (Inconel 601) Insulation of high-quality ceramic fiber High energy efficiency Trailing thermocouple for temperature measuring in the tube Screw conveyor Gas feeding device for hydrogen and nitrogen Inspection glass for visual process control or additional pyrometer measuring Gas feeding device for safe operation when using flammable and explosive gases Burning-off device with flame supervision for safe operation when using flammable and explosive gases Safety package for safe operation Gas warning system for safe operation when using flammable and explosive gases Storage tank and collecting vessel with filling-level meter Cellular wheel sluice for product dosing and emptying Pressure reducer
