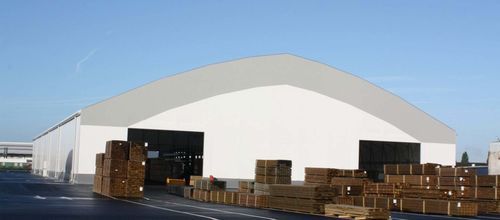

Industrial tent Schwarzmann

aviationfor workshopsstorage

Overview
The XXL metal-textile building by Schwarzmann provides large clear spans and high internal heights to maximise usable volume while optimising cost. It combines a galvanized steel lattice frame with a pre-stressed composite membrane roof, delivered as a customised solution for temporary or permanent industrial and logistics installations.

Advantages of the offer

• Speed: Turnkey delivery in under 6 months.
• Economics: Competitive cost per cubic metre for large-volume storage.
• Eco-designed: Optimised use of materials to reduce resource consumption.
• Durability: Adaptable to changing operational needs and designed for long-term service.

Applications

• Industrial warehouses — high-rack storage, production workshops, equipment and process testing
• Logistics and transport hubs
• Bulk storage (aggregates, commodities)
• Wood and paper processing facilities
• Waste management and material recovery sites
• Aircraft hangars

Key product features and construction details

• Large-volume solution suited to rack-height storage with wide spans and/or sites with environmental constraints requiring an extra-resistant structure.
• Engineered for severe conditions (coastal, high altitude) with structural calculations complying with local standards and project activity.
• Galvanized steel lattice frame covered by a pre-stressed composite membrane (Serge Ferrari composite fabrics for one-piece, fully welded/bonded roofs), providing consistent finishes and surface translucency for natural lighting.
• Permanent installation comparable to conventional steel tray roofs while delivering coherent industrial/logistics architecture.
• Supplier-managed implementation and site supervision, including coordination of operational equipment supply (openers, lighting, HVAC, etc.).
• Manufacturer range referenced: Schwarzmann large-format metal-textile buildings.

Characteristics / Technical specifications

• Dimensions:
  Width: up to 60 metres without intermediate post
  Height: over 12 metres
  Surface area: from 1000 m²
• Roof:
  PVC-coated polyester
  UV protection
• Structure:
  Galvanized steel lattice covered with a PVC membrane
  An inner liner can be installed to reduce condensation and improve insulation
• Attachment system:
  Metal pipes inserted into PVC pockets
  Tensioned membranes fastened to walls and roof using threaded bars and perforated bands
• Resistance:
  Tensioned membranes engineered to withstand wind and snow loads
• Multiple openings:
  Options include pedestrian doors, motorised doors, truck doors, goods doors, windows
• Options on request:
  Basic interior fit-out
  Printing of customer logo on roof
