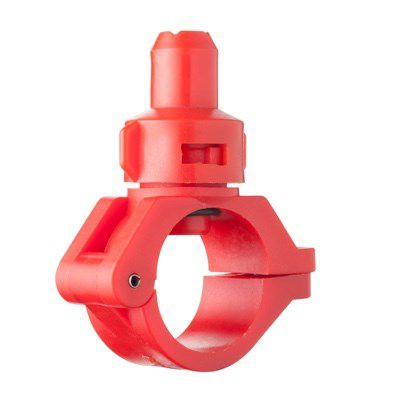

Paint nozzle QT series

sprayfull-conepolypropylene

Full cone spray. The two-piece combination design is divided into a nozzle and a body. The nozzle part can be fixed to the body without fixing the nut. The body has a special pipe clamp design. It is only necessary to drill a hole in the water outlet pipe, and then lock it with iron screw. The nozzle is fixed on the pipe. This nozzle is commonly used in the pre-painting and continuous casting machine cooling process. size: ● Drilling hole size for pipe clamp: Ø 20 (19.0~20m/m) ● Fits pipe size: 1-1/4"(OD42 +/-0.3mm), 1-1/2"(OD48 +/-0.4mm) Recommended working pressure: 2.0 kgf/cm² Flowrate tolerance: ± 10% @ 2.0 ± 0.1 kgf/cm² Angle tolerance: ± 10° @ 2.0 ± 0.1 kgf/cm² Applications: ● Cleaning: Dust, cleaning device etc. ● Dispersion: Humidifying, Chemicals, firefighting, and dust suppression.
