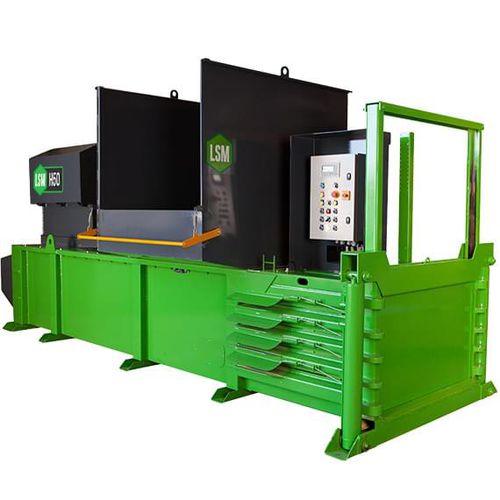

Cardboard baling press H50

for paperfor plasticsfor waste

Offering higher volume processing and more options than vertical mill-size balers, the H50 is ideal for baling large quantities of cardboard, plastic, PET bottle, textile, paper, aluminium and dry waste as well as straw. Recommended for high-volume users, recycling centres, waste contractors, distribution centres, supermarkets. FEATURES Heavy-duty V-shaped shear bar for cutting difficult materials Semiautomatic guillotine-style discharge allows for full ejection of bale 15-kilowatt motor for efficient bale compaction and power consumption Automatic cycle with anti-jam programme 4-wire easy-tie system ensures bales stay compacted “Bale Full” indicator light helps ensure safe operation at multi-user sites SPECIFICATIONS Bale size: 750mm H x 1100mm W x 1000mm D (variable) Cycle time: 40–50 seconds Dimensions: 2130mm H (excluding hopper) x 5990mm W x 1905mm D Full bale discharge Automatic start up Power: 3 phase 380/440 volt. 15 kW motor Fill opening: 1,310mm x 1,100mm Dual pressure select 12mm high carbon steel floor and top of press plate 40 mm high carbon discharge door Machine weight: approximately 7000 kg Noise level: 80 dB 300 Lt oil reservoir OPTIONS Diesel drive system Conveyor system Perforator 2 models Various hoppers Hook-lift mounting system bin Bin lift system with cages Marine specification Annual service contract Remote maintenance 18 kW 3 phase 380/440 V power pack
