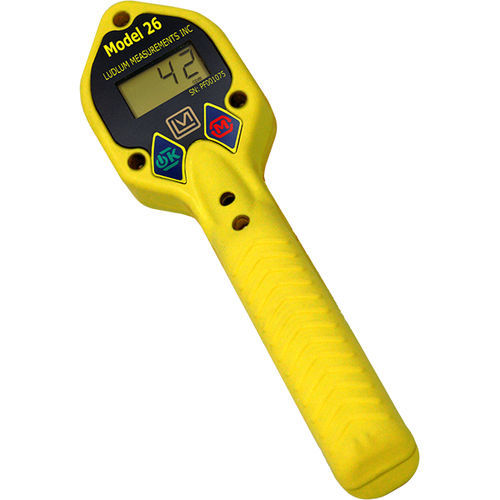

Alpha radiation scintillation detector 26

beta radiationhandheldwith digital display

• Integrated, Lightweight Design Simplifies Frisking • Protective Rubber Covering Enhances Ruggedness, Water Resistance, and Non-Slip Comfort • Employs Standard 15.51 cm2 GM Pancake Detector • Ratemeter, MAX Hold, and Scaler Operating Modes • Simple Two-Button Operation • Count Rate and Scaler Alarms • Automatic LCD Backlight Activation • Wrist Cuff and Lanyard Included Frisking people and objects for alpha and beta contamination can be awkward because manipulation of the detector and the electronics requires the use of both hands. The cable-less Model 26 consolidates the electronics and the detector into one ergonomic housing. This optimized configuration incorporates a standard 15.51 cm2 GM pancake probe, loud audio “click” output, and large auto-ranging LCD display with automatic back lighting into one convenient package, making it easier than ever to detect contamination. Operation is kept extremely simple through the use of just two buttons. Another useful feature, especially when the display is not always directly visible, is the 'MAX' mode that captures the highest or peak count rate. The scaler mode, with a preset count time, allows the user to take a discrete measurement. This system also incorporates low power circuitry, delivering hundreds of hours of use with just two standard “AA” size batteries. The calibrator can protect parameters (cps/cpm, response time, alarm points, & scaler time) or allow the user to adjust them. The Model 26 series may also be ordered with a standard 3 mm (1/8 in.) plug, mono headphone jack to better monitor the instrument's audible output in noisy environments (part number 4498-538). See more under the Options tab.
