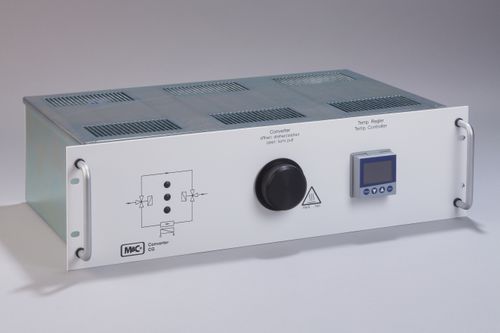

Nitrogen oxide (NOx) converter CG-2

ERT19"

- NO2 converter in a compact 19" rack housing - With unheated gas inlet and outlet - High-flow capacity - Long service life - Catalyst cartridge easy to change without any tools - Operating temperature adjustable up to +680 °C [+ 1256 °F] - Power: 230 V - Material of sample-contacting parts: stainless steel, Viton®, PVDF, PTFE In many countries, clean-air regulations require a continuous measurement of nitrogen oxides NOx, as the sum of nitrogen dioxide NO2 and nitrogen monoxide NO, for combustion processes as soon as the share of NO2 exceeds 5 % of the total NOx emission. Due to the conversion to NO, the use of a standard NO analyzer is possible. Gas converter type CG‑2 without bypass valves, in a 19" rack housing, with thermally insulated, compact tube furnace, with non‑heated sample inlet, electrically heated with thermocouple Ni‑CrNi and electronic temperature controller adjustable from 50 to 680 °C, with high‑ and low‑temperature alarm, connection: G 1/4" female ISO, material: SS 316Ti, Viton®, PVDF, PTFE, power: 230 V/50 Hz, 520 VA, without catalyst cartridge
