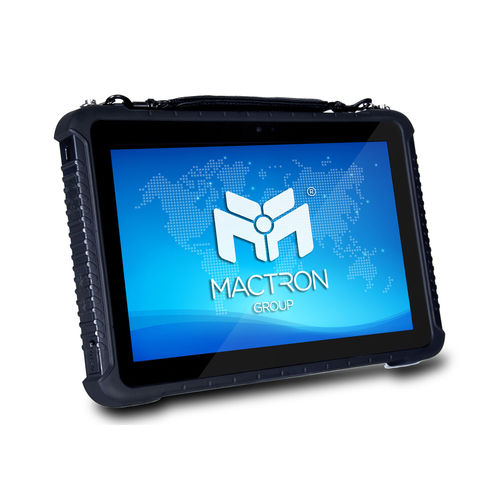

Windows Base, Rugged Mobile Tablet PC
Support Windows 10
Support USB3.0 type A connector
Support Battery Single Charger Docking
Support GPS navigation
Support 1D/2D barcode scanner
Support Finger Identification
Rugged IP65 protection level
Support 5000mAh pluggable battery
Support UART port, RJ45 port and customized port
Support Wrist Strap and back jacket
Applications: Food Process, Robotics, Factory, HMI screening, Packaging, etc.
Display Type - 10.1" IPS TFT LCD
Resolution - 1920 x 1200
Brightness - 330nit
Touch screen type - 10 points capacitive, G+G, 7H-Anti-scratch, 1.1mm, COF
CPU - Intel Skylake Core m3-6Y30, 4M Cache, 2.20 GHz
GPU - Intel HD Graphics 515
RAM - 4 GB LPDDR3
ROM - 128 GB
Network - 802.11 a/b/g/n/ac (2.4G/5.8G dual band WiFi)
Bluetooth 4.2 (BLE) class1, transmission distance:10m
4G
IO Ports - 1 x TF slot, max:128G (SDHC/SDXC)
1 x SIM slot
1 x USB 3.0
1 x Micro USB 2.0 for OTG
1 x HDMI 1.4a Type C
1 x 3.5mm standard earphone jack
1 x DB9 (1 x RS232)
1 x RJ45
1 x DC jack
1 x 12pin POGO pin
Application - 1D/2D Barcode scanner (Optional)
Fingerprint (Optional)
GPS & Glonass
Operation System - Windows 10 (Optional)
Camera - Front: 2.0MP camera; Rear: 8.0MP camera
Speaker - 1 x Embedded 8Ω/0.8W waterproof speaker (Built-in)
Mic - Sensitivity: -42db, output resistance:2.2kΩ (Built-in)
Sensor - G-sensor
Power Adapter - AC100V ~ 240V, 50Hz/60Hz, output DC 12V/4A
Battery - 5000mAh/7.4V (Removable)
Using time - 6hrs (Default 50% volume, default 200nit, play 1080HD video)
Rugged Feature - IP65, 1.0m drops
Operating Temperature - -10°C ~ 50°C
Storage Temperature - -30°C ~ 70°C
Humidity - 95% non-condensing
Dimensions - 280mm x 187mm x 22mm
Weight - 1205g
