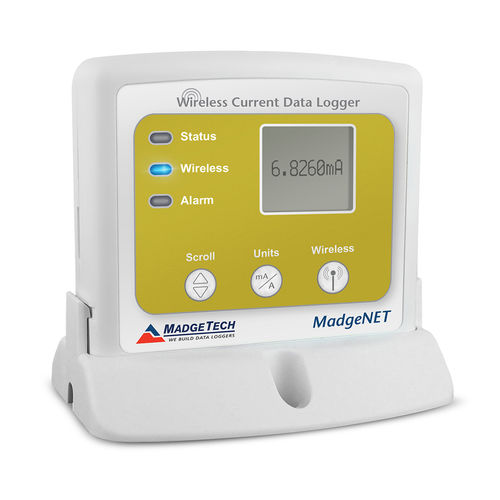

Current data-logger RFCurrent2000A

radio frequencywirelessUSB

Product Overview
The RFCurrent2000A is a wireless DC current data logger. Includes standard calibration certificate.

Details
The RFCurrent2000A is a wireless DC current data logger available in three ranges: 20 mA, ±160 mA and ±3 A. The data logger can connect directly to low-level DC current sources and can also be interfaced with a wide range of current output sensors such as flow meters and pH transmitters. The device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFCurrent2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action. The RFCurrent2000A is compatible with the MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units. The RFCurrent2000A is MadgeTech Cloud Services ready, providing the ability to monitor real-time data remotely on any internet enabled device. Note: RFC1000 wireless interface required.

Key Features

• Digital display with instant, min/max/average readings
• Continuous monitoring with up to 32,256 readings memory
• Available in 3 measurement ranges: 20 mA, ±160 mA, ±3 A

General Specifications
Memory: 32,256 readings
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Baud Rate: 250,000
Channels: 1
LED Indicators: Green, Blue & Red
Battery Life: 4 years typical at a 15 minute reading rate
Material: ABS plastic
Dimensions: 20 mA & 3 A: 3.19 in x 3.5 in x 0.95 in (80.9 mm x 88.9 mm x 24.1 mm) - Data logger only — 160 mA: 3.17 in x 3.5 in x 0.95 in (80.5 mm x 88.9 mm x 24.1 mm) - Data logger only
IP Rating: IP22
Operating Environment: -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package: RFC1000 (wireless); USB to Mini USB Cable
Approvals: US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Current
Current Range: 20 mA: -2 mA to 30 mA — ±160 mA: ±160 mA — ±3 A: ±3 A
Max Voltage: Inputs & Ground: 0 to 3 V
Current Resolution: 20 mA: 0.5 μA — ±160 mA: 5 μA — ±3 A: 100 μA
Current Calibrate Accuracy: 20 mA, 160 mA: ±0.05 %FSR — 3 A: ±0.15 %FSR
Current Input Impedance: 20 mA: 10 Ω, ±1% — ±160 mA: 1 Ω, ±1% — ±3 A: <0.05 Ω

Wireless
RF Carrier Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET wireless transceiver with fully bi-directional communication
Output Power: +0 dBm typical
Receiver Sensitivity: -95 dBm typical
Typical outdoors Line of sight: Up to 2000 ft
Typical indoors line of sight: Up to 500 ft

Technical Specifications

• Model: RFCurrent2000A
• Measurement ranges: 20 mA; ±160 mA; ±3 A
• Memory capacity: 32,256 readings
• Reading rate: 1 s to 24 hr
• Display: LCD with min/max/average and instant readings
• Alarms: User-programmable alarms with notifications
• Interface: RFC1000 wireless interface required; USB to Mini USB cable for direct connection
• Battery life: ~4 years (typical at 15 min sample rate)
• Material: ABS plastic
• Dimensions (data logger only): 80.9 x 88.9 x 24.1 mm (varies slightly by range)
• IP Rating: IP22
• Operating range: -20 °C to +60 °C, 0–95 %RH non-condensing
• Wireless: 2.45 GHz MadgeNET, outdoor LOS up to 2000 ft, indoor LOS up to 500 ft
• Approvals: FCC, IC, CE, KCC, CMIIT, LCIE
• Software: Compatible with MadgeTech 4 Software; MadgeTech Cloud Services ready
• Includes: Standard calibration certificate
