WiFi diagnostic tool TechPRO® 2

Bluetoothreal time monitoringfor vehicles

Overview

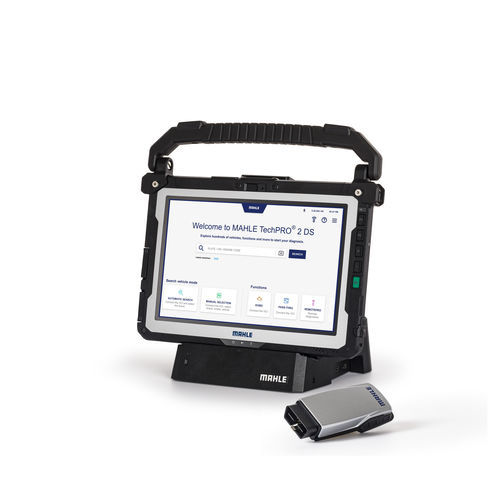

MAHLE TechPRO® 2 is a next-generation vehicle diagnostic tablet designed for professional workshops. Available as a standard Android tablet and as TechPRO® 2 Plus (Windows tablet). The platform provides an intuitive user interface and is engineered for continuous daily use in demanding environments.

Design and durability
Rugged hardware engineered for workshop conditions. Tablet certified IP66 and compliant with MIL-STD-810H. The companion VCI is rated IP54. Compact, ergonomic construction simplifies handling and on-vehicle use.

VCI and connectivity
Includes an ultra-compact Vehicle Communication Interface (VCI) with integrated DoIP (Diagnostic over Internet Protocol). Compact dimensions (137 x 52 x 31 mm) and a weight of 110 g facilitate operator handling while delivering high data throughput. Ready for remote diagnosis. Wireless: Wi‑Fi 2.4 GHz (802.11 b/g/n); Bluetooth BLE 5.0.

Graphical interface
The diagnostic platform features a redesigned graphical interface aligned with common touch gestures and workshop workflows. Configurable workspace with preferences and filters. Step-by-step guided procedures, enriched graphics and training tutorials support faster fault finding and operator onboarding.

Technical Features
Communication protocols: CAN (ISO 15765-4); CAN-FD (ISO 11898-1:2015); Single Wire CAN (SAE J2411); DoIP (ISO 13400); KWP 2000 (ISO 14230); ISO 9141-2; SAE J1850 PWM; SAE J1850 VPW (GM Class II); UDS (ISO 14229); SAE J1939; GMLAN (SAE J2284, CAN based); GMLAN (HS CAN); DIAG H [Honda]; VW TP 1.0/2.0
Operating system: To be paired with Android | Windows tablets
Wireless Connection: Wi‑Fi 2.4 GHz (802.11 b/g/n); Bluetooth BLE 5.0
Operating temperature: 0–50 °C
Power: 3 W
IP Grade: IP54 (VCI); tablet: IP66
Dimensions (W x H x D): 137 x 52 x 31 mm
Weight: 110 g

Specifications

• Model: MAHLE TechPRO® 2 (vehicle diagnostic tablet).
• Configurations: standard Android tablet and TechPRO® 2 Plus (Windows tablet).
• Durability: Tablet IP66; MIL-STD-810H compliant; VCI IP54.
• VCI: ultra-compact DoIP Vehicle Communication Interface, ready for remote diagnosis.
• Supported protocols: CAN, CAN-FD, Single Wire CAN, DoIP, KWP2000, ISO 9141-2, SAE J1850 PWM/VPW, UDS, SAE J1939, GMLAN, DIAG H (Honda), VW TP 1.0/2.0.
• Wireless: Wi‑Fi 2.4 GHz (802.11 b/g/n), Bluetooth BLE 5.0.
• Operating range: 0–50 °C.
• Power consumption: 3 W.
• VCI dimensions: 137 x 52 x 31 mm; VCI weight: 110 g.
• Software features: configurable interface, preferences and filters, step-by-step guides, training tutorials.
