R1234yf air conditioning station ACX series

R134afor agricultural vehiclesautomatic

Overview

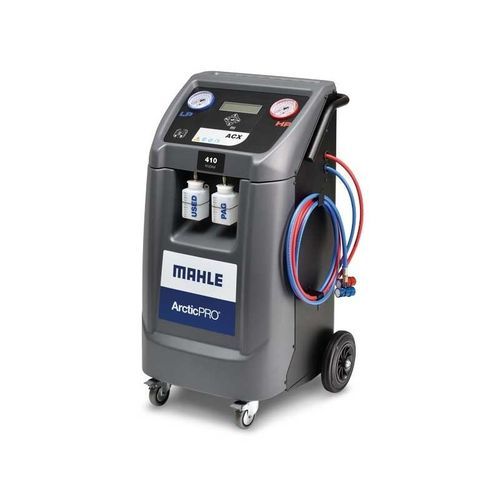

ArcticPRO® ACX 310 (R134a) and ArcticPRO® ACX 410 (R1234yf) are compact, mobile air-conditioning service stations designed for workshop and mobile service use. They integrate key functions of larger ArcticPRO® stations while minimizing capital outlay. Operation is intuitive, making them suitable as secondary workshop units or portable service solutions. The ACX 310 offers an optional agricultural and construction machinery database and a multi-stage recharge program to handle hard-to-reach A/C systems.

Key features

• High-resolution display for clear diagnostics
• Stable metal housing
• Non-condensable gas handling: automatic check/manual release (ACX 310); automatic (ACX 410)
• Two oil bottles: fresh oil and used oil
• Nitrogen-forming gas leak test available with optional external kit
• Remote assistance via ACX Manager (USB)

Technical data
Dimensions: 532 × 617 × 957 mm
Weight: 65 kg
Reservoir capacity: 12 l

Optional

• Thermal printer for customer reports
• Service data database
• Hybrid function
• Agricultural and construction machinery database (ACX 310 only)
• E³ – CONNECT
• Gas identifier

Technical specifications

• Refrigerants supported: R134a (ACX 310) and R1234yf (ACX 410)
• Display: high resolution
• Housing: stable metal housing
• Oil bottles: 2 (fresh oil, used oil)
• Non-condensable gas: automatic check/manual release (ACX 310); automatic (ACX 410)
• Nitrogen leak-test: available with optional kit
• Suitable use: workshop secondary unit, mobile on-site service, agricultural and construction machinery service (with ACX 310 database)
