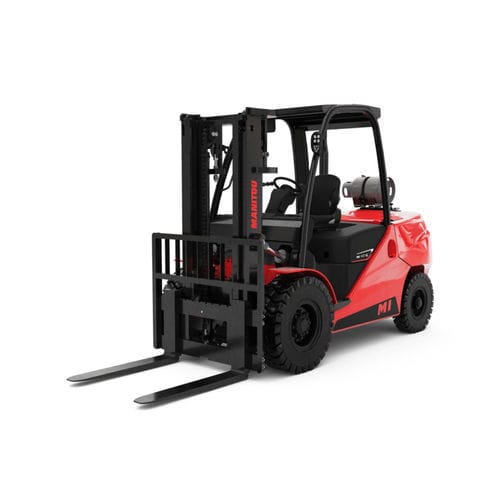

LPG forklift MI 45 G ST5

ride-onhandlingindoor

Technical characteristics Manufacturer Manitou Model Name MI 45 G ST5 Power source LPG Operator type Seated Max. capacity 4500 kg Load center of gravity 500 mm Load distance, centre of drive axle to fork 550 mm Wheelbase 2000 mm Weight Service weight 6630 kg Weight on front axle (laden) / rear axle (laden) 9850 kg / 1280 kg Weight on front axle (Unladen) / rear axle (Unladen) 3000 kg / 3630 kg Wheels Dimensions Seat height/stand height 1370 mm Height of overhead guard (cabin) 2390 mm Height of towing bar (coupling height) 445 mm Overall length 4315 mm Length to face of forks 3095 mm Overall width 1490 mm Overall width - Single wheels 1490 mm Overall width - Twinned wheels 1940 mm Forks section / width / length 50 mm x 150 mm x 1220 mm Fork carriage ISO 2328 (class/form) A/B 3A Fork carriage width 1250 mm Ground clearance below mast 170 mm Ground clearance at centre of wheelbase 230 mm Aisle Width for pallets 1000 x 1200 crossways 4350 mm Aisle width for 800 x 1200 pallet lengthways 4550 mm Turning radius 2800 mm Internal turning radius (over tyres) 100 mm Performances Travel speed (laden / unladen) 21 km/h-22 km/h Lifting speed (laden / unladen) 0.49 m/s-0.52 m/s Lowering speed (laden / unladen) 0.50 m/s-0.50 m/s Drawbar pull (Laden / Unladen) 3800 daN / 2200 daN Gradeability (laden / unladen) 23 % / 34 % Service brake Oil bath Transmission type Torque converter
