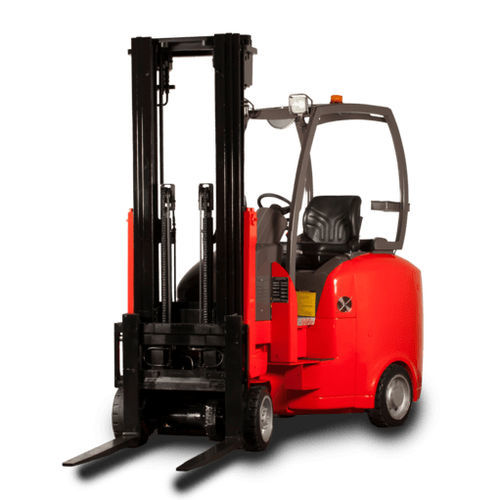

Electric forklift EMA II 17
ride-onhandlingstorage

electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, storage, for warehouse, indoor, outdoor
Other characteristics
compact, articulated
Carrying capacity

1,700 kg
(3,747.9 lb)

Lifting height

7,620 mm
(300 in)

Overall width

1,080 mm
(42.5 in)

Overall length

3,710 mm
(146.1 in)

Load center distance

500 mm
(19.7 in)

Weight without load

6,000 kg
(13,227.7 lb)

Axle loading with maximum load front

4,250 kg
(9,369.6 lb)

Axle loading with maximum load rear

3,250 kg
(7,165 lb)

Axle loading without load front

2,000 kg
(4,409.2 lb)

Axle loading without load rear

4,000 kg
(8,818.5 lb)

Height to top of overhead guard

2,260 mm
(89 in)

Seat height

1,200 mm
(47.2 in)

Length to fork face

2,560 mm
(100.8 in)

Fork carriage width

860 mm
(33.9 in)

Ground clearance under mast with load

50 mm
(2 in)

Ground clearance at center of wheelbase with load

130 mm
(5.1 in)

Travel speed

9 km/h, 9.5 km/h
(5.6 mph, 5.9 mph)

Lifting speed

0.4 m/s, 0.5 m/s
(1.312 ft/s, 1.64 ft/s)

Lowering speed

0.4 m/s
(1.312 ft/s)

Gradeability

8 %, 10.5 %

Rated output

10 kW
(13.6 hp)

Maximum operating pressure

200 bar
(2,900.8 psi)

Oil flow

25 l/min
(6.6 us gal/min)

Noise level

73 dB

Description

Are you looking to optimise your storage space? Then you need the EMA II 17 forklift! With its 220° articulated mast and compact dimensions, this little machine can help you increase storage capacity by up to 45%. It can easily weave its way through aisles measuring at least 1.9 m in width and can place and remove items at up to 7 m in height.The EMA II 17 really is an asset to productivity as it can be used both indoors and outdoors thanks to its generous ground clearance and four soft rubber wheels, all of which translates to reduced handling costs and costly double handling operations over time as well as optimised storage surfaces.
