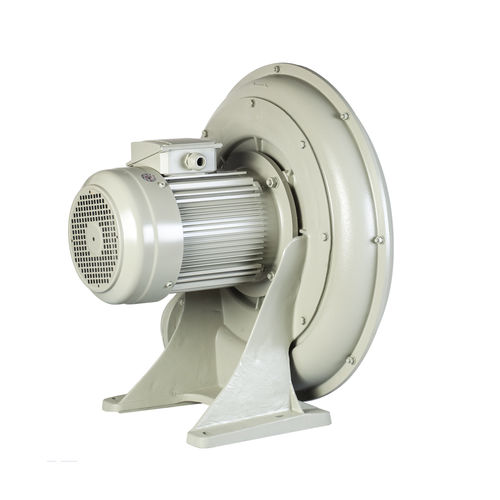

Air blower TB series
gascentrifugalsingle-stage

air blower
air blower
air blower
air blower
air blower
Add to favorites
Compare this product


Characteristics

Type
air, gas
Technology
centrifugal
Number of stages
single-stage
Applications
drying, transport
Other characteristics
aluminum, three-phase
Flow rate

Max.: 3,000 m³/h (105,944 ft³/h)

Min.: 1,080 m³/h (38,140 ft³/h)

Operating pressure

17 mbar, 25 mbar, 40 mbar (0.247 psi)

Nominal power

Max.: 5.5 kW (7.48 hp)

Min.: 0.75 kW (1.02 hp)

Description

Model:TB150-7.5 Turbo Blower Phase:3 Stage:one Frequency:50/60 (HZ) Power:5.5 (kw) Voltage:380 (V) Current:19 (A) AirFlow:3000 (m3/h) Vacuum: (mBar) Pressure:40 (mBar) Sound:80 (Db) Weight:93 (kg) Dimensions(L*W*H): (mm) Main Material - The main parts of the machine are ail made of ADC-12 high strength aluminum alloy. Motor cooper wire - The use of 180 - grade high - température copper wire. in the motor by a strong load or pump to transport high température gas. résistance to the high température generated by the motor and ma intain normal operation. Motor Bearing - Use high strength. high température résistant spécial Steel and EDK250 degree high température grease. Can adapt to long time non-stop operation. Blower impeller - The impeller of TB fan is double plate and clip type. It is assembled by light aluminum cutting. The blade is made of fluid arc surface, which is light and efficient. The spécial impeller of TB fan is to improve the fan's pressure and wind Blower advantages - The air inlet and outlet of the fan are designed independentIy. and can be adjusted at random and used for butt joint. The air outlet can be adjusted at four angles, and the motor can be replaced on the left and right. The air inlet can be equipped with air dust filter or air damper. which is used to adjust the air flow. The air outlet can be Blower app1ication - Suitable for UV printing and drying System, plastic raw material drying equipment. combustion engine combustion equipment. boiler. heat. cold and wind pumping use.
