Hydraulic flange alignment tool HFA9THP

for wind turbinesfor the petrochemical industrypower distribution

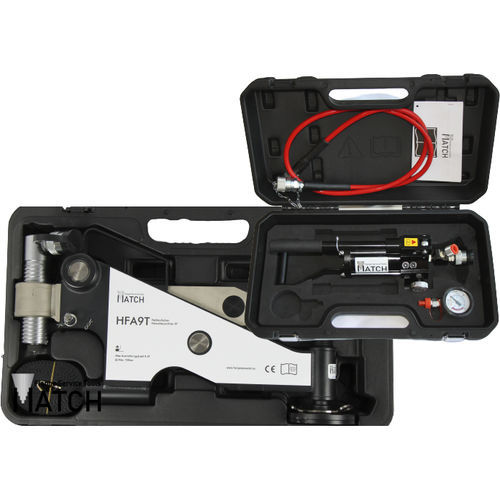

The HFA9T is designed for lifting, lowering and realigning misaligned flanges with an alignment force of 9.0t (90kN). The tool is driven by an external hydraulic pump. Please note that the HFA9T does not include a hydraulic pump nor hydraulic hose. MATCH recommends the HP350A hose and pump kit for HFA9T, as supplied in the HFA9THP kit. The required minimum bolt hole size must be 35.5 mm. HP350A Hydraulic Oil-tight Hand Pump – Hose KIT Single Connection Oil-tight hydraulic hand pumps ATEX from MATCH have been specially developed to operate in all directions without loss of performance. This includes underwater applications. Can be used with all 700 bar tools within their oil capacity specification, e.g. HSW15TEX Single Kit, HFA9T, HLW18T Single Kit, HMSP. Each pump kit incl. pressure gauge, adapter, coupling and oil felt 1.80m hydraulic hose with couplings. Kit includes: BOX A 1xHFA9T Tool 1xRatchet Strap 1xPlastic carry case Tool Only Weight (KG) 14,5 BOX B 1 x P350AEX single pump 700 bar, 0.35L oil capacity 1 x pressure gauge 0-1,000 bar + coupling 1/4″ 1 x pressure gauge adapter with coupling 3/8″ 1 x Hydraulic hose HH180 1 x Carry case Tool Only Weight (KG) 4.2 Gross Kit Weight 18,2kg+8,7kg = 26,90kg
