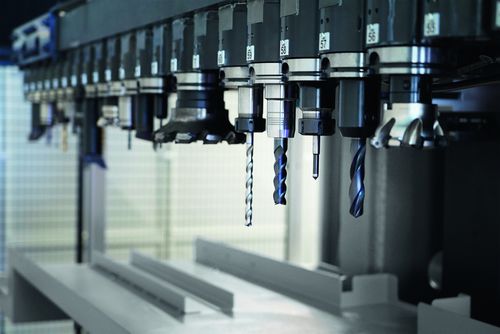

CNC tool changer

shuttleautomatic

System assembly group from Y = 825 mm and Z = 1,100 mm Shuttle changer outside the machining area. This allows tools to be changed in any X-axis position. Up to 80 tool places Travelling tool magazine Side magazine (not shown) With separate tool changer Available up to 80 tools Version with lateral lift door Additional magazine up to 280 tools With double gripper and automatic tool supply Second control panel at the tool loading station Tool management for standard magazine and additional magazines directly at the station Pick-up stations | drill head fi xation Pick-up station for oversized tools, such as angle heads, multi-spindle heads, attachment spindles, etc. Pick-up magazine can be mounted laterally on the right or left side Angular heads Design and function available individually Example of angle head with 360° infinitely variable positioning via NC axis Oil-air lubrication for angle heads Stop block for angle head locking Three-point support
