Orbital pipe cutting and beveling machine 05 series

portableband

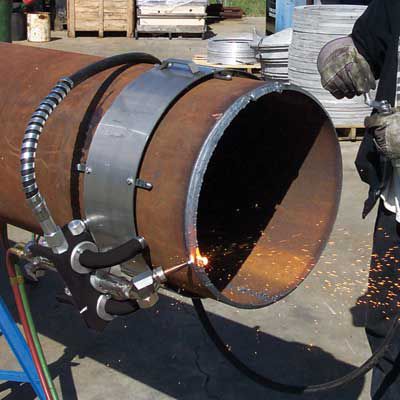

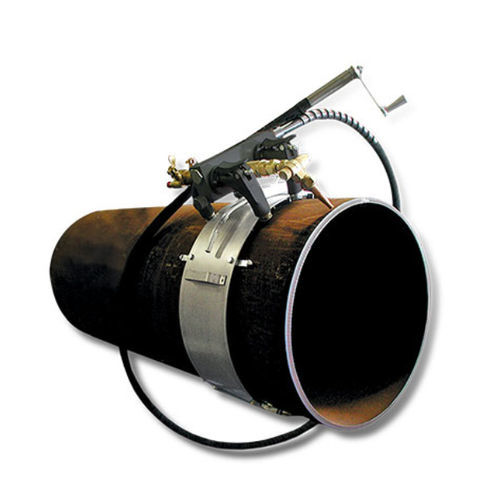

The ideal solution for cutting and beveling in close quarters, the Band Crawler requires as little as 10″ / 254 mm of clearance around the pipe. Install the stainless steel band anywhere on the pipe, and it conforms to the pipe shape, producing a consistent, precise bevel, even on severely out-of-round pipe. The lightweight Band Crawler can be quickly set up and operated by one person on a pipe as large as 60″ / 1,524 mm. Bands 48″ / 1,219 mm and larger feature a standard stiffening rib, which simplifies one-person set-up. Precise: Band conforms precisely to the out-of-round condition of the pipe to maintain consistent cutting tip distance from pipe surface Simple: One person can set up and cut horizontal or vertical pipes as large as 48″ / 1,219 mm Low profile: Requires as little as 10.5″ / 267 mm of radial clearance One size fits all: One Band Crawler fits all band sizes Fast: 60% faster than hand cutting and grinding Motorized: Available with PLASMASPEED digital motor control TORCH ANGLE HEAD ADAPTOR: Allows the torch tip to be adjusted for any angle from a square cut (no bevel) to a bevel angle up to 90 degrees while also allowing torch lead or lag angle adjustment.
