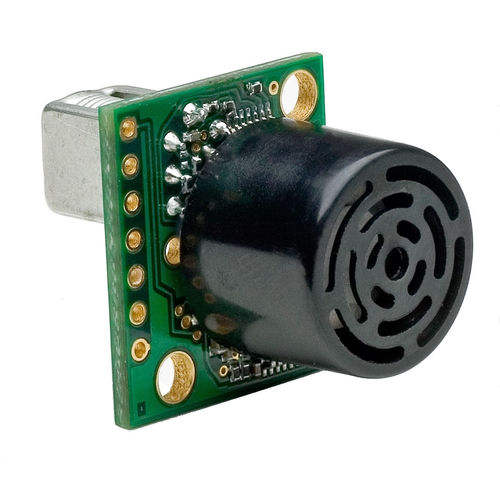

Ultrasonic sensor MB12X2 I2CXL-MaxSonar-EZX series
Add to favorites
Compare this product
Description
The I2CXL-MaxSonar-EZ line offers the ability to use up to 127 sensors on a single bus over the I2C interface. These ultrasonic rangefinders offer 1cm resolution, 3.0-5.5VDC operation, high power output, noise rejection, and automatic calibration. Please see datasheet for full specifications.
MB1202 I2CXL-MaxSonar-EZ0
Ranges from 25cm to 765cm with up to 40Hz read rate. Widest detection field. Excellent for people detection.
MB1212 I2CXL-MaxSonar-EZ1
Ranges from 25cm to 765cm with up to 40Hz read rate. Wide detection field. Excellent for people detection.
MB1222 I2CXL-MaxSonar-EZ2
Ranges from 20cm to 765cm with up to 40Hz read rate. Mid-width detection field. Balance between sensitivity and side object detection.
MB1232 I2CXL-MaxSonar-EZ3
Ranges from 20cm to 765cm with up to 40Hz read rate. Narrow detection field. High noise tolerance.
MB1242 I2CXL-MaxSonar-EZ4
Ranges from 20cm to 765cm with up to 40Hz read rate. Narrowest detection field. Highest noise tolerance.
