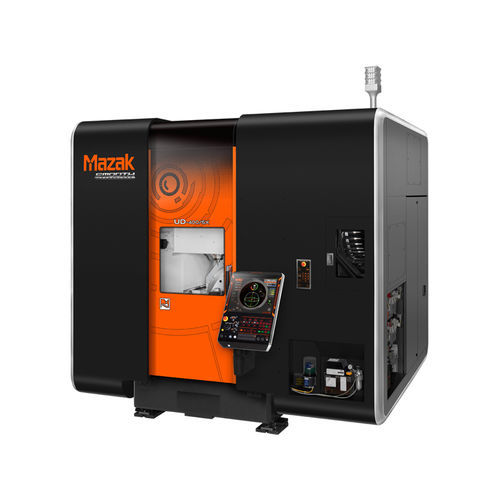

5-axis CNC machining center UD-400/5X

verticalcolumn typeHSK-E40

Fully symmetrical double column structure, mineral casted base and column, 45,000 min -1 high-speed spindle with core cooling to prevent heat generation and vibration. Capable of long-term, stable ultra-precision machining. CNC / software technologies developed for high-speed machining of die and mould, especially in the free-form machining field. The functions altogether enables high-productivity and excellent machined surface quality. Process integration The UD-400/5X is capable of continuous machining of multiple surfaces and free-form surface machining by simultaneous 5-axis control, without the need to change setup. By integrating multiple processes with a single chucking, production lead time and setup errors can be reduced. Reduced tool protrusion length When machining near-vertical areas with small-diameter tools, 3-axis machines require long protruded tools, limiting machining conditions such as feedrate. The UD-400/5X has a tilted table and a short tool protrusion length for stable machining. This allows the machine to function in its full potential. Improved surface quality The peripheral speed of the tip of the ball end mill is always zero, and machining a plane surface vertically on a 3-axis machine will reduce the accuracy of the machined surface. On the other hand, the UD-400/5X can tilt the workpiece to allow machining in areas where the tool peripheral speed is high, thus improving the quality of the machined surface and ensure stable surface accuracy. Built-in motor spindle The integral spindle / motor design can minimise vibrations during high-speed operation to ensure exceptional surface finishes and maximum tool life.
