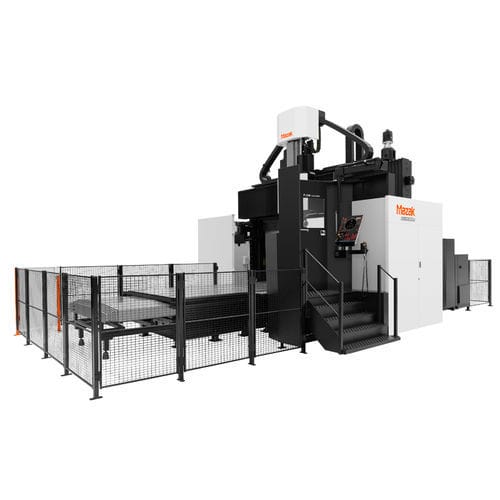

3/4-axis CNC machining center FJW-100/160verticalcolumn typefor steel
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3/4-axis
- Spindle orientation
- vertical
- Structure
- column type
- Machined material
- for steel, for cast iron
- Spindle mount
- BT 50, CAT50
- Number of tool stations
- 120 tools, 80 tools, 50 tools
- Applications
- for automatic tool changers, heavy-duty, for large workpieces
- Other characteristics
- high-power
- X travel
4,250 mm
(167 in)- Y travel
3,200 mm
(126 in)- Z travel
800 mm
(31 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Power
26 kW
(35.35 hp)- Workpiece max height
1,650 mm
(65 in)- Work feed X-axis
30,000 mm/min
(20 in/s)- Work feed Y-axis
32,000 mm/min
(21 in/s)
Description
90°angle attachment tool for four face machining - standard equipment 5°indexing machining performed by EIA / ISO program）
Column height 1650mm (64.96") by utilizing cross rail with W-axis control
Angle Head Attachment
Automatic load / unload of angle head attachment, as well as automatic tool change (index 72 potions, every 5°) can be performed, allowing for automatic continuous machining as well as top face machining. (72 posion indexing per 5° performed by EIA / ISO program)
W-axis
Column height 1.65 m (64.96") by simultaneous operation of ram (Z-axis stroke of 0.8 m (31.5") and cross rail (W-axis) for tall workpiece machining
