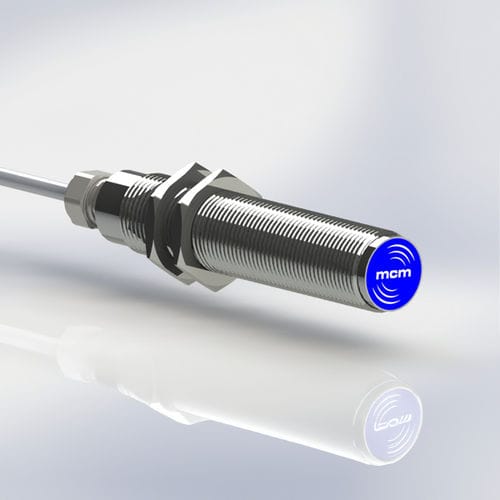

Capacitive proximity sensor CPP

cylindricalIP67non-contact

The CPP-xxx Capacitive Proximity Probe, engineered by MC-monitoring SA, represents a significant advancement in non-contact measurement technology. Designed to cater to a wide range of industrial applications, this probe excels in monitoring shaft vibration and position in rotating machines, offering unparalleled precision and versatility. This series is expertly crafted to measure displacements across three distinct ranges: 0.2-2.2mm, 0.4-4.4mm, or 0.4-6.4mm, thereby providing flexibility to suit various monitoring needs. Its sensitivity adjusts from 2.67 μA/μm to 8 μA/μm, depending on the measurement range, guaranteeing high-precision data capture. The CPP-xxx maintains its accuracy consistently, unaffected by the target material's nature, as long as it's conductive. The probe's output range spans from 4.0 to 20.0 mA, ensuring robust and reliable signal transmission for monitoring purposes. It achieves high linearity within ±2% to ±6%, depending on the chosen range, thus ensuring precise measurements. The repeatability of less than 0.2% and a frequency response from 0 to 1.0kHz make it particularly suited for capturing high-frequency vibrations in rotating machinery. Designed to withstand harsh industrial conditions, the CPP-xxx operates efficiently within a temperature range of -25°C to 85°C and is fortified with an IP67 ingress protection rating. Its resilience is further enhanced by its chrome-plated brass body, which stands up to challenging environments. The sensor's power requirements are met with a standard +24V industry supply, making it a convenient choice for diverse industrial setups.
