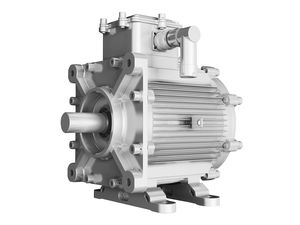

AC motor SRPM112M4W10brushlesswaterproofIP54
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- brushless
- Protection class
- waterproof, IP54
- Number of poles
- 4-pole
- Cooling mechanism
- water-cooled
- Applications
- for compressors
- Other characteristics
- low-noise
- Power
10 kW
(13.596 hp)- Torque
8 Nm
(5.9005 ft.lb)- Rotational speed
12,000 rpm
(75,398.22 rad.min-1)
Description
Application
1.Hydrogen Oxygen air compressors
2.Hydrogen circulating system
Specifications
Model type: SRPM112M4W10
Voltage:330V AC
Rated power:10KW
Rated torque:8N.m
Rated speed:12000rpm
Efficiency:94%
Insulation:H/F
Ingress protection:IP54
Weight:19kg
Cooling method:Water
