Vibration data logger WebDAQ 504

wirelessWiFidigital

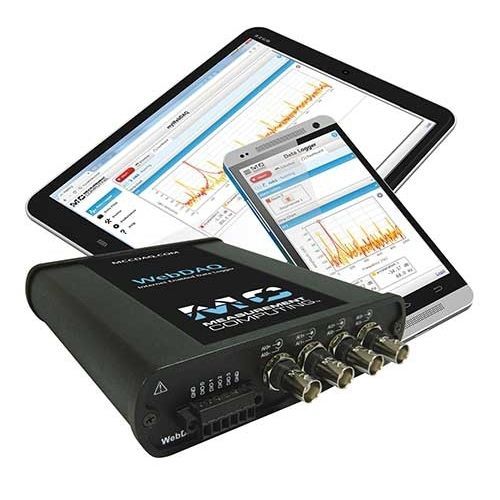

The WebDAQ 504 is a stand-alone, vibration and acoustic data logger designed for remote monitoring, analysis, and control. • Log four simultaneous IEPE inputs • Built-in web server allows access from any device with a web browser • WiFi support for wireless operation • View data in real time or post acquisition • Virtually unlimited storage • Easy, flexible task scheduling • Real-time FFTs for continuous monitoring and analysis • Four isolated digital I/O for triggers and alarms • Alarming and notifications with email and SMS messaging • Ability to export .csv data for Excel® and MATLAB® The WebDAQ 504 is a stand-alone, acoustic and vibration logger designed for remotemonitoring and control. All the intelligence is built into the WebDAQ, eliminatingthe need for a PC or additional software. By using the embedded WebDAQ webserver, users can easily configure simple or sophisticated applications, log vibrationdata, update digital outputs and/or send notifications based on alarm conditions,and view real-time data from any location and any device with a web browser.The WebDAQ 504 performs high-accuracy measurements from up to four IEPE(Integrated Electronic Piezoelectric) sensors. Housed in a heavy-duty chassis,the WebDAQ 504 is rugged enough for industrial applications such as noise andvibration testing. The WebDAQ Series embedded OS andweb server provides an all-in-one packagefor stand-alone data logging and alarming. Users can monitor and control theirapplications from anywhere with a webbrowser.The WebDAQ web server is optimizedfor both desktop and mobile use. Userscan perform data acquisition tasks fromphones, tablets and laptops with a single,intuitive user interface.
