3-axis CNC milling machine MECAFAB series
verticalfor copperfor non-ferrous metals

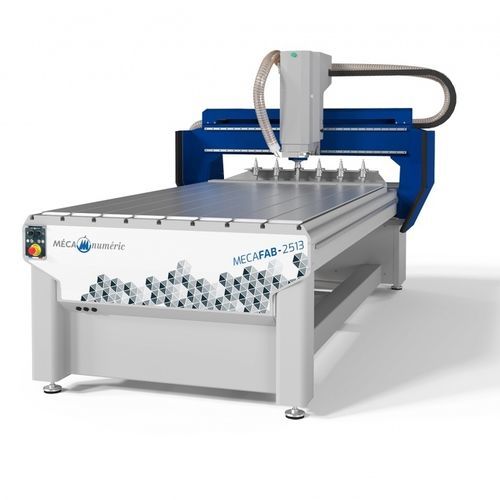

3-axis CNC milling machine - MECAFAB series - MECANUMERIC - vertical / for copper / for non-ferrous metals
3-axis CNC milling machine - MECAFAB series - MECANUMERIC - vertical / for copper / for non-ferrous metals
3-axis CNC milling machine - MECAFAB series - MECANUMERIC - vertical / for copper / for non-ferrous metals - image - 2
3-axis CNC milling machine - MECAFAB series - MECANUMERIC - vertical / for copper / for non-ferrous metals - image - 3
Add to favorites
Compare this product
Go to the MECANUMERIC website for more information

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Machined material
for copper, for non-ferrous metals, for brass, for wood, for composites, for glass, for resin, for thermoplastics, for aluminum
Structure
mobile gantry, with fixed table, traveling-column
Spindle mount
SK30
Number of tool stations
12 tools
Associated functions
engraving, tapping, chamfering, cutting, drilling
Certifications
ISO 9001
Applications
for the aeronautical industry, for structures sandwich, for medical applications, for the wood industry, for the mold industry, for the automobile industry, for molds, for tubes, for bar machining, for the aerospace industry, for profiles, for matrices, for orthopedics, for sticks, for graphite machining, for window and door frames, CAD/CAM, for PVC window profiles, for the aluminum industry, for windows and doors, for panels, for sheet metal, for small parts production, optical, desk, for furniture, for model making, for the plastics industry, for knife handles, for small workpieces, foam, for vehicles, for aluminum profiles, for aeronautics
Other characteristics
high-performance, high-speed, medium-sized, contour, for production, for micro-machining, precision, rigid, with tool changer, high-productivity, single-head, wet, mobile, HSC, CE, variable-speed, frame included, for micro-milling, with automatic tool changer
X travel

1,050 mm, 2,550 mm
(41.34 in, 100.39 in)

Y travel

1,360 mm
(53.54 in)

Z travel

200 mm
(7.87 in)

Rotational speed

Max.: 24,000 rpm
(150,796 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Power

3.8 kW, 4.5 kW, 5 kW
(5.17 hp, 6.12 hp, 6.8 hp)

Weight

1,500 kg, 2,250 kg
(3,306.93 lb, 4,960.4 lb)

Overall length

2,300 mm, 3,800 mm
(90.6 in, 149.6 in)

Overall width

2,170 mm
(85.4 in)

Overall height

2,100 mm
(82.7 in)

Description

The range of milling machines made for Fablabs and training sector The milling machine range made for Fablabs and training sectors. Thanks to its design and versatility, this equipment offers the combination of a controlled budget and impeccable quality for those involved in training or for manufacturing facilities such as Fablabs. STRENGTHS Complete and customizable equipment : Several tables with material holding system Automatic nozzle for chip suction Tool cooling (optionnal) Secure machine for safe and easy operations Maximum versatility to mill a wide range of materials : Polymers: PMMA, HDPE, PS, PET, PETG, PU, PC, ABS, PVC… in solid or honeycomb panels Wood and its by-products: MDF, TRESPA and other phenolic derivatives, natural wood, etc. Light alloys: Aluminium, Brass, Copper, Zinc, etc. Composites: Alucobond®, Dibond® and similar, Glass/Epoxy, Carbon/Epoxy, etc. Honeycomb panels: Nida®, Nomex®, etc. Machinable plates for molds and models Mineral base panels for ITE Power and robustness : Monobloc chassis and mobile gantry in mechanical welded steel Preloaded ball screw transmissions Servomotors with very high resolution absolute encoders
