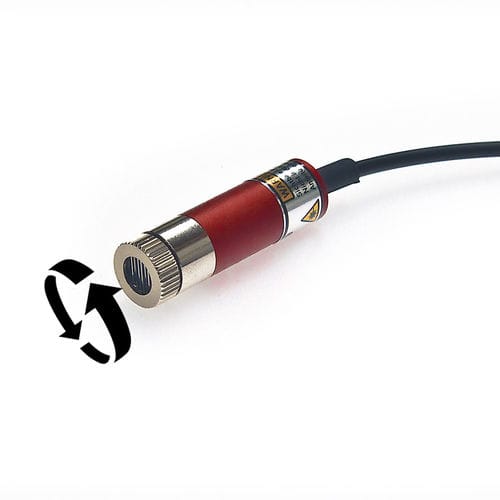

Red cross laser PLM-10-650-CH

Positioning laser module 10mW RED "cross hair" Ready-for-use positioning laser module, complete set, with high visibility for integration into other machines. Adjustable focus, very high reliability and service life. MediaLas positioning laser modules are small, well-thought-out, and powerful all-rounders. Our modular system enables a multitude of module variants, in order to always achieve the optimal results required each day in the production area. Alongside the extremely small dimensions, the primary aspect to emphasise is the high level of reliability which it achieves over a very long service life. Especially the 12mm modules are very easy for the user to calibrate and adjust for their respective application. Both the focus, i.e. the line width at the focal point, as well as the line position can be adjusted. This is quick and easy to achieve by turning the front brass ring, which also contains the optics. We can optionally supply mounting pods for surface mounting to surfaces, ceilings, or walls. This is bolted to the base (with the included hardware) and offers an easy way to fasten the module to a surface from the front (see figure). Our Design Department is always at your disposal to discuss customer-specific requirements. LINE WIDTH On our 12mm modules, the line width (also known as "focus") can be adjusted quickly and easily to the desired size or distance. The optics are mounted in the brass ring on the front, and can be adjusted very easily and safely with a fine thread. This makes it possible to adjust the line width to the technically feasible optimum setting for any distance desired.
