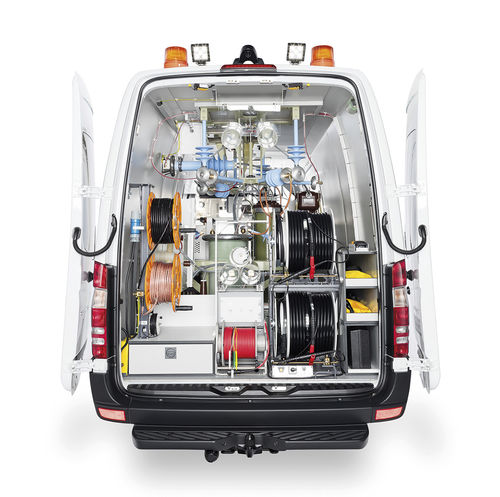

Fault location system R30

R30 Cable fault location and cable testing system for low, medium and high voltage transmission cables ■ Modern software-based centralized control interface similar to well-established fully centrally controlled test vans of the MV world ■ Single rotary knob operation for most functions ■ Available versions: 110 kV or 150 kV; optionally with 400 kV expansions ■ Unique Arc Reflection Method up to 50 kV with second-to-none TDR-based fault finding performance ■ Transient prelocation; ICE up to 100 kV, DECAY 110 kV, 150 kV or 400 kV ■ Surging/Thumping up to 100 kV / 4000 J ■ Unique best-in-market discharge capability, suitable and necessary for long HV cables ■ Powerful VLF up to 70 kVRMS ■ Options for PD diagnostics and tanDelta testing available
