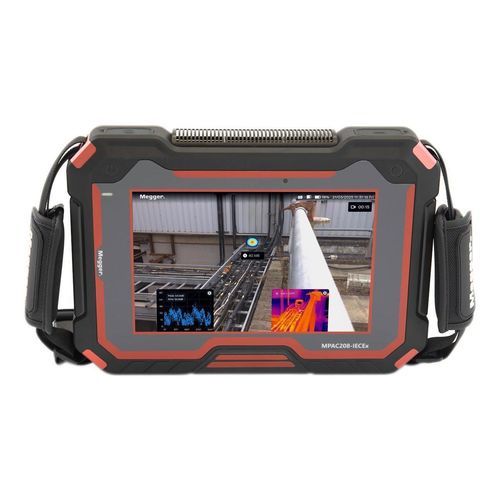

Microphone array camera MPAC208

acousticindustrialthermal imaging

About the product
The MPAC208 is a professional acoustic imaging camera for rapid, accurate detection of ultrasonic sound sources in industrial sites. It enables maintenance teams to locate gas leaks, mechanical faults and partial discharge (PD) on high‑voltage equipment without interrupting operations.

Core hardware
The system integrates a 208‑channel MEMS microphone array (2 kHz–100 kHz) fused with a 13 MP optical camera and presented on an 8‑inch capacitive touchscreen. Real‑time visual overlays display acoustic sources on the optical image for immediate localisation.

Variants and certification
The MPAC208‑IECEx variant provides identical functionality and is certified for use in Class 2 explosive atmospheres.

Designed for real industrial environments
Detection range up to 200 m for close‑proximity inspections and stand‑off checks at substations, switchgear and overhead lines. Focus function and noise suppression isolate ultrasonic targets in noisy plants. SoundScan™ directional guidance assists technicians in tracing sources outside the visible frame.

Three core operating modes

• Gas Leak Mode: estimates leak rate, distance and economic impact to prioritise repairs.
• Partial Discharge Mode: records PD activity and delivers PRPD analysis for early detection and classification.
• Mechanical Mode: detects bearing wear, valve leaks, cavitation and vibration‑related faults via ultrasonic signatures.

Extend capability with thermal correlation
Optional thermal imaging module enables side‑by‑side acoustic and thermal visualisation so users can correlate heat signatures with acoustic anomalies for faster root‑cause assessment.

Built for field use
Portable and lightweight (~1.4 kg). Environmental rating IP54. Interchangeable smart batteries provide up to 10 hours operation (2 × 5‑hour packs included). Designed for utilities, industrial process plants, renewables and manufacturing to support predictive maintenance and energy efficiency.

Camera verification
The optional MPAC‑V accessory runs automated field checks of frequency response, SPL and visual microphone alignment to verify operational parameters between calibrations.

Additional features
Noise suppression, Focus mode, SoundScan™ directional guidance, built‑in leak quantification (SPL, volumetric and monetary estimates), PRPD visualisation and PD counting to support severity assessment.

Technical specifications

• Brand: Megger
• Model: MPAC208 (MPAC208‑IECEx variant available)
• Microphone array: 208‑channel MEMS
• Acoustic sensitivity: 2 kHz – 100 kHz
• Optical camera: 13 MP
• Display: 8‑inch capacitive touchscreen
• Detection range: up to 200 m (application dependent)
• Operating modes: Gas Leak, Partial Discharge (PRPD), Mechanical
• Optional: thermal imaging module for acoustic/thermal correlation
• Verification accessory: MPAC‑V (frequency response, SPL, visual calibration)
• Weight: approx. 1.4 kg
• Ingress protection: IP54
• Power: interchangeable smart batteries; up to 10 hours (2 × 5‑hour packs included)
• Field features: Focus mode, Noise suppression, SoundScan™ directional guidance, leak quantification (SPL, volumetric, monetary)
