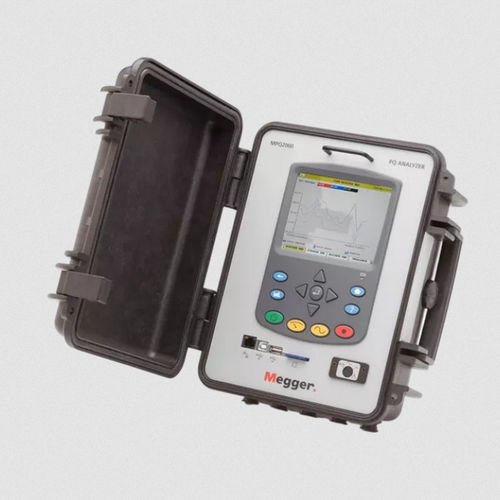

Power quality analyser MPQ2000

portableautomaticIP54

About the product

• Portable three-phase power quality analyser for field and site testing
• Powered from phase A (AC/DC)
• Weatherproof enclosure: IP54 (NEMA4)
• Voltage ranges: 0–1000 V AC RMS and ±1500 V DC
• Auto CT to identify current clamps and measurement range
• Connection verification to detect incorrect wiring
• On-board data analysis with template and standards comparison
• Real-time scope and DVM modes; colour VGA display

Product overview
The Megger MPQ2000 is a portable three-phase power quality analyser designed for reliable on-site diagnostics. It records and displays RMS values, waveforms, demand, phase angles, harmonics, unbalance and flicker in real time. Automatic clamp recognition and connection verification simplify setup and reduce recording errors, enabling fast deployment on industrial, commercial and utility sites.

Data recording, storage and analysis
The instrument supports long-duration recordings via large internal memory and expandable SD card storage. Recorded data is viewable on the MPQ2000 colour VGA screen and transferable via USB cable, USB drive, Ethernet or directly from the SD card. The included Megger PQ PC software (license-free) offers advanced charting, waveform and harmonic analysis and helps locate power quality events such as lighting flicker, computer malfunctions and nuisance tripping.

Key features

• IEC61000-4-30 Class A compliance
• Auto CT identification and range detection
• Connection verification to prevent miswiring
• Real-time scope and DVM modes for immediate diagnosis
• Rugged IP54 (NEMA4) enclosure for field use

Technical specifications

• Environmental protection: IP54 (NEMA4)
• Standards: IEC61000-4-30 Class A
• AC voltage range: 0–1000 V RMS
• DC voltage range: ±1500 V
• Data transfer/storage: Ethernet, USB, USB drive, SD card
• Wireless: supported via off-the-shelf bridge
• Display: colour VGA for local review
• On-board analysis: templates and compliance comparison
