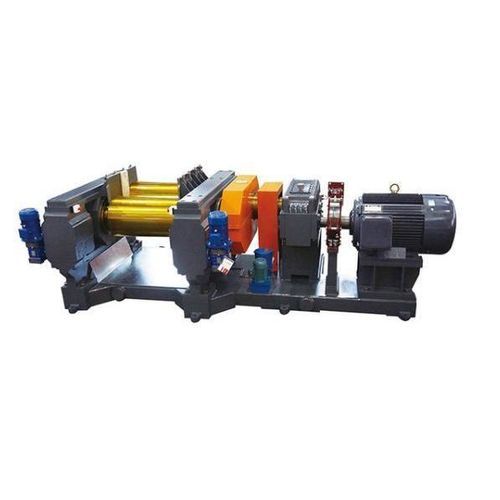

Roller refiner

Overview
This refining machine is designed for rubber processing and reclaimed rubber production. It integrates centrifugal composite casting rollers and an advanced peripheral drilling water-cooling system to control roller surface temperature and ensure consistent mixing quality.

Technical advantages

• Roller manufactured by centrifugal composite casting, offering improved wear resistance and higher strength compared with traditional static-cast rollers; service life reported >3× that of conventional rollers. Patent: 200920010357.2
• Peripheral drilling water-circulation cooling rapidly removes heat generated during rubber mixing, reducing roller surface temperature and improving reclaimed rubber quality.
• Due to the peripheral drilling cooling the equipment achieves high linear speed (up to 75 m/min for the rear roller), lowering energy consumption per unit output and increasing throughput.
• Modular equipment structure simplifies maintenance and repair operations.
• Product recognized by industry evaluations and awards (Dalian brand product 2011; scientific and technological achievement appraisal by China Federation of Logistics and Purchasing at international advanced level; third prize Science and Technology Progress Award, China Federation of Logistics and Purchasing 2012; Golden Bridge Award, Ministry of Science and Technology 2014).

Performance parameters

• Roller manufacturing: centrifugal composite casting
• Roller surface material: high nickel-chromium-molybdenum alloy
• Cooling method: peripheral drilling water-circulation cooling
• Front roller working diameter: 480 mm
• Rear roller working diameter: 610 mm
• Working roller length: 870 mm
• Rear roller linear speed: 75.1 m/min
• Front/rear linear speed ratio: 1 : 1.27–1.815
• Roller pitch adjustment range: 0–15 mm
• Main motor power: 75 kW
• Main motor speed: 980 rpm
• Reducer type: square-box hard-tooth-surface ZSY355
• Bearing (double structure): spherical roller bearing
• Approx. working current: ≈100 A
• Invention Patent Number: 200920010357.2
