Electric RGV KP series

Product overview

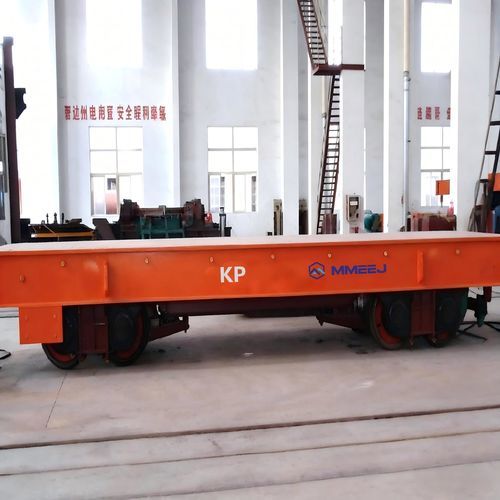

The KP series cable-powered electric transfer cart operates on a 380 V supply and is available in two cable systems: reel-type cable-fed and drag-cable type. It is designed for on-rail intra-plant transport of heavy loads, offering straightforward rail installation, low initial civil works, and simplified maintenance suitable for extra-large tonnage moving tasks.

Technical data
Applicable gauge: 1435 mm. Capacity range: 5 t to 500 t across KP models. Top platform sizes (typical range): length 3,600–13,000 mm, width 2,000–3,500 mm, height 620–1,400 mm. Speeds: up to 30 m/min for smaller models, down to 15 m/min for largest models. Motor power range: 2.2 kW–44 kW. Wheel diameters: φ400–φ800 mm. Wheel counts: 4–16 depending on model. Self-weight range: approx. 2.7 t–110 t. Recommended rail profiles vary by model (P24, P38, P50, QU80, QU100).

Features / specifications

• Type: Cable-powered electric flat car (380 V)
• Series: KP series (reel-type cable-fed and drag-cable type)
• Applicable gauge: 1435 mm
• Available capacities: 5 t up to 500 t across KP models
• Top platform typical sizes: length 3,600–13,000 mm, width 2,000–3,500 mm, height 620–1,400 mm (model dependent)
• Speeds: up to 30 m/min (smaller models) to 15 m/min (largest models)
• Motor power range: 2.2 kW–44 kW depending on model
• Wheel diameters: φ400–φ800 mm depending on model
• Typical wheel counts: 4 to 16 wheels depending on model
• Self-weight range: approx. 2.7 t to 110 t depending on model
• Recommended rail profiles: P24, P38, P50, QU80, QU100 depending on model
