CNC lathe Lathe
horizontalinclined bedflatbed

CNC lathe - Lathe - Meijin Machinery Equipment (Dalian) Co., Ltd. - horizontal / inclined bed / flatbed
CNC lathe - Lathe - Meijin Machinery Equipment (Dalian) Co., Ltd. - horizontal / inclined bed / flatbed
CNC lathe - Lathe - Meijin Machinery Equipment (Dalian) Co., Ltd. - horizontal / inclined bed / flatbed - image - 2
CNC lathe - Lathe - Meijin Machinery Equipment (Dalian) Co., Ltd. - horizontal / inclined bed / flatbed - image - 3
CNC lathe - Lathe - Meijin Machinery Equipment (Dalian) Co., Ltd. - horizontal / inclined bed / flatbed - image - 4
CNC lathe - Lathe - Meijin Machinery Equipment (Dalian) Co., Ltd. - horizontal / inclined bed / flatbed - image - 5
CNC lathe - Lathe - Meijin Machinery Equipment (Dalian) Co., Ltd. - horizontal / inclined bed / flatbed - image - 6
CNC lathe - Lathe - Meijin Machinery Equipment (Dalian) Co., Ltd. - horizontal / inclined bed / flatbed - image - 7
CNC lathe - Lathe - Meijin Machinery Equipment (Dalian) Co., Ltd. - horizontal / inclined bed / flatbed - image - 8
Add to favorites
Compare this product
Go to the Meijin Machinery Equipment (Dalian) Co., Ltd. website for more information

Characteristics

Control type
CNC
Spindle orientation
horizontal
Structure
inclined bed, flatbed, slant bed
Number of tool stations
12 tools
Drive system
servo-driven
Applications
for metal, for large workpieces, for large-diameter parts, for molds, for production, for shaft machining, heavy-duty, for automotive applications
Performance
high-precision, high-rigidity, high-performance, powerful
Associated function
boring, milling, drilling, threading, grooving, tapping
Maximum part length

Min.: 300 mm
(12 in)

Max.: 8,000 mm
(315 in)

Maximum cutting diameter

Min.: 400 mm
(16 in)

Max.: 1,800 mm
(71 in)

Description

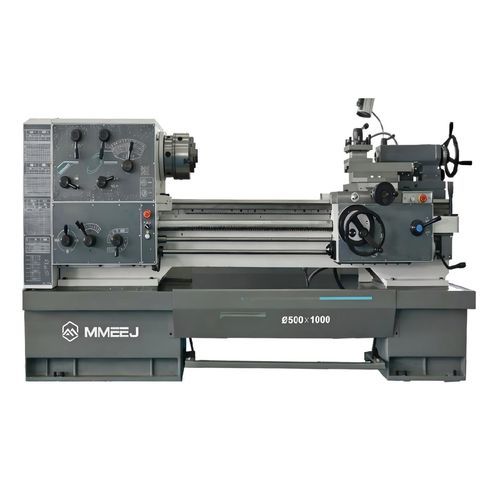

Product category: Horizontal Lathe

Horizontal Lathe (CDS series)
  • Product Presentation: The CDSB/C series lathes can perform various turning operations: internal and external cylindrical surfaces, end faces, and conical surfaces.
  • Saddles available for turning large-diameter or irregularly shaped parts.
  • Metric or imperial lead screw options available on request; capable of turning metric, imperial, module, and diametrical pitch threads.
  • Additional operations possible: drilling, reaming, oil groove drawing.
  • Machining range: Maximum turning diameter 500mm-660mm; maximum workpiece length 1000mm-3000mm.


Horizontal Lathe (CW-E series)
  • Product Presentation: CW-E series for turning internal/external cylindrical surfaces, conical surfaces, end face turning, grooving, cutting, drilling, and various commonly used metric, imperial, module, and diametral pitch threads.
  • Suitable for small-batch production workshops and machine repair shops.
  • Materials processed: steel, cast iron, non-ferrous metals.
  • Saddle lathe version expands machining diameter range for disc-shaped and irregular parts.
  • Accuracy & finish: parts can reach IT7 dimensional accuracy and Ra1.6 surface roughness (where specified).
  • Machining range: Maximum turning diameter 630mm-1000mm; maximum workpiece length 1000mm-6000mm.


Horizontal Lathe (CW-M series)
  • Product Presentation: CW-M series features mature structure, high power, strong rigidity, and wide spindle speed range for heavy-duty or high-speed cutting.
  • Capable of machining various shaft and disc-shaped parts: internal/external cylindrical surfaces, conical surfaces, end faces, grooving, chamfering, drilling, tapping.
  • Thread capabilities: metric, imperial, module, diaphragm, tapered threads (special threads by consultation).
  • Designed for machining large and complex parts with superior performance.
  • Machining range: Maximum turning diameter 1000mm-1600mm; maximum workpiece length 1500mm-8000mm.


Horizontal Lathe (CKA / Flat Bed CNC Type)
  • Product Presentation: CKA series flat-bed CNC lathes controlled on longitudinal (Z) and transverse (X) axes.
  • Automated cutting operations on shaft and disc parts: internal/external cylindrical, conical, arc surfaces, end faces, grooving, chamfering.
  • Thread turning: metric straight threads, end face threads, imperial straight and tapered threads.
  • Suitable for diverse, small-batch production and complex, high-precision parts.
  • Machining range: Bed rotation diameter from 400mm to 800mm; workpiece length from 750mm to 5000mm; custom lengths available.


Horizontal Lathe (CKA-M / Large Flat Bed CNC Type)
  • Product Presentation: CKA-M is a large-scale CNC horizontal lathe controlled on Z and X axes.
  • Designed to automatically complete cutting on large shafts and discs; supports high-volume production and repetitive machining cycles via FANUC/Siemens and similar CNC systems.
  • Particularly suited for complex, high-precision, high-volume production.
  • Machining range: Bed rotation diameter 1000mm-1800mm; workpiece length 1500mm-6000mm.


Horizontal Lathe (Slant Bed DL-M series)
  • Product Presentation: DL-M slant bed CNC lathe with internationally advanced design; integrally cast bed and 45° inclined guideways for high rigidity.
  • Control systems: FANUC 0i-TFPLUS or other high-quality domestic/international systems with AC servo drive.
  • Operations: turning, drilling, milling on shaft and disc-shaped parts; supports multi-process in single clamping (turning, boring, drilling, reaming).
  • Features: 45° inclined bed guideway layout, high-rigidity 12-position turret, high-capacity sliding guideways, modular configuration options.
  • Machining range: Bed rotation diameter 520mm-900mm; maximum cutting length 1000mm-3000mm.


Horizontal Lathe (Slant Bed DT series)
  • Product Presentation: DL/DT slant bed series with integrally cast main bed and 45° inclined guideways; high rigidity and reliability.
  • Control systems: FANUC 0i-TFPLUS or equivalent; AC servo drives for reliable performance.
  • Suitable industries: automotive parts, molds, bearings, mining machinery; supports automatic multi-process cycles in single clamping.
  • Machining range: Bed rotation diameter 480mm-680mm; workpiece length 300mm-1000mm.


Characteristics / technical specifications
  • General turning operations supported across series: internal/external cylindrical surfaces, conical surfaces, end faces, grooving, chamfering, drilling, reaming, tapping.
  • Threading capabilities: metric, imperial, module, diametral pitch, tapered and special threads (series-dependent; special threads may require consultation).
  • Saddle vs flat-bed vs slant-bed options: saddle lathes for large-diameter/irregular parts; slant-bed designs (45°) for increased rigidity and integrated multi-process capability; flat-bed CNCs for automated, precision work.
  • Control systems: CNC options from FANUC, Siemens, and other reputable domestic/international vendors (for CNC series).
  • Machining diameter ranges by series: CDS series 500–660mm; CW-E 630–1000mm; CW-M 1000–1600mm; CKA 400–800mm; CKA-M 1000–1800mm; DL-M 520–900mm; DT series 480–680mm.
  • Workpiece length ranges by series: CDS 1000–3000mm; CW-E 1000–6000mm; CW-M 1500–8000mm; CKA 750–5000mm (custom lengths available); CKA-M 1500–6000mm; DL-M 1000–3000mm; DT 300–1000mm.
  • Typical materials: steel, cast iron, non-ferrous metals.
