Chamber oven UF260TS
pass-throughforced convectionstainless steel

chamber oven
chamber oven
chamber oven
Add to favorites
Compare this product


chamber, pass-through
forced convection
Other characteristics
stainless steel, for clean rooms

256 l (67.6 gal)

Maximum temperature

Min.: 20 °C (68 °F)

Max.: 250 °C (482 °F)


500 mm (19.69 in)


640 mm (25.2 in)


800 mm (31.5 in)

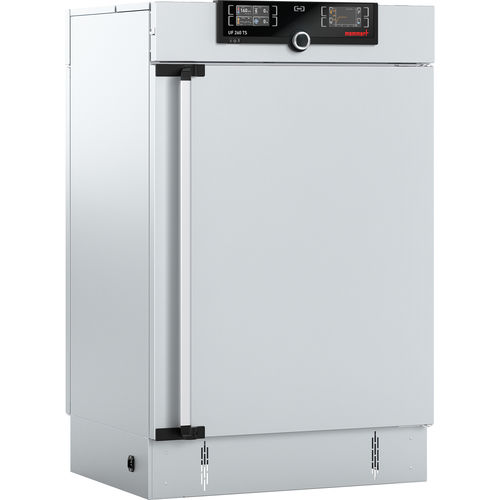

Pass-through oven UF260TS The Memmert pass-through oven saves time when loading and reduces the danger of contamination, especially when directly transporting the chamber load between the grey room and the clean room. Standard delivery Pass-through oven The Memmert heating oven with fully insulated stainless steel door on both sides saves time during loading and reduces the risk of contamination, specially when handling sensitive load between grey and clean rooms. On this page, you can find all the essential technical data on our pass-through oven. Our customer relations team will be pleased to help if you want further information. Control technology ControlCOCKPIT: TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays. Language setting: German, English, Spanish, French, Polish, Czech, Hungarian Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days Function HeatBALANCE: adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 % Function SetpointWAIT: the process time does not start until the set temperature is reached Calibration: three freely selectable temperature values Ventilation Fan: forced air circulation by quite air turbine, adjustable in 10 % steps for each segment individually Fresh air: Admixture of pre-heated fresh air by electronically adjustable air flap Vent: vent connection with restrictor flap Communication Documentation: programme stored in case of power failure
