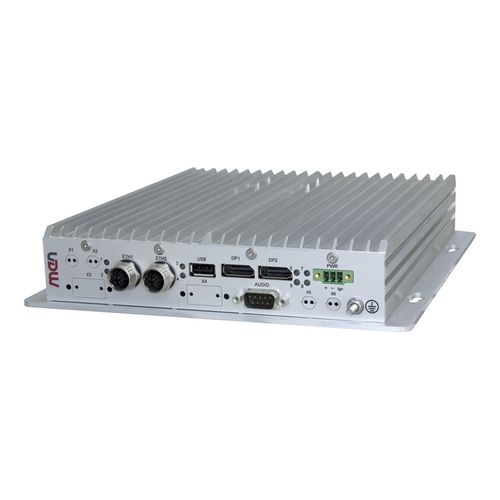

PCI Express box computer BC51M
SATASD cardDDR3 SDRAM

PCI Express box computer
PCI Express box computer
PCI Express box computer
PCI Express box computer
Add to favorites
Compare this product


Characteristics

Ports
SATA, PCI Express, 4G, DDR3 SDRAM, SD card
Domain
with cooling
Other characteristics
fanless, wireless, mini

Description

The BC51M is a maintenance-free box computer that has been designed for use in vehicles, e.g. in trains, commercial vehicles or mobile machines for applications such as Internet-On-Board, positioning via GNSS, entertainment or predictive maintenance. An MVB option is available to support integration into the Train Communication Network (TCN). Wireless Communication The BC51M can take over typical on-board wireless functions, whether it is an Internet connection for passengers or locating the vehicle. Two PCI Express Mini Card slots and two micro-SIM slots provide flexibility in implementing mobile service standards up to 4G LTE or WLAN/WLAN IEEE 802.11, and derivates. Solid Processing Performance The BC51M is powered by an Intel Atom processor from the E3900 series running at up to 1.6 GHz. Other dual/quad core processors of the Intel Atom E3900 series can be used, giving high scalability in CPU performance. The box PC features 8 GB DDR3 SDRAM and offers an SD card slot. A slot for a SATA hard-disk/solid-state drive can be provided within the housing as an option in a special product version. Fanless Operation for Mobile Applications The system is designed for fanless operation at temperatures from -40 °C to +70 °C (+85 °C for up to 10 minutes), its special aluminum housing with cooling fins serves as a heat sink for the internal electronics and in this way provides conduction cooling. Railway-Compliant PSU with Ignition Function The BC51M comes with an integrated 30W wide-range DC/DC converter compliant with EN 50155 (nominal input voltages 24 and 36 V). The 24 V DC version is prepared for ISO 7637-2 (E-mark for automotive).
