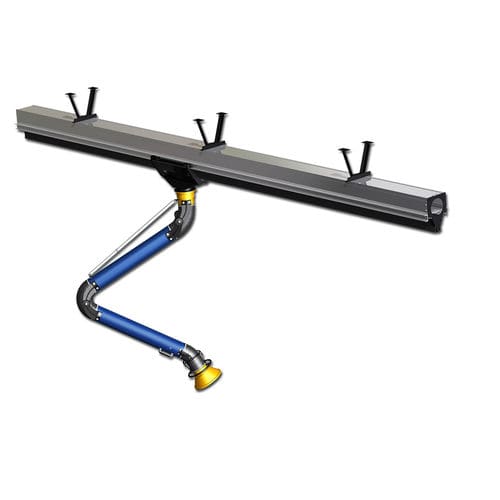

The SZOK sliding suction rail is designed to transport fume extraction equipment (fume arms or hose drops) between multiple emission sources. The system is built from standard 4 m aluminium segments with reinforcements and a travelling exhaust trolley (standard inlet Ø 160 mm) that runs between a self-sealing rubber flap. Segments can be joined to create extended movable extraction systems. The trolley is compatible with Oskar fume extraction arms and hose-drop assemblies.

Equipment which can be mounted to the connection flange of the trolley

• Oskar self-supporting fume arm – direct mounting for 6"/160 mm fume arms; an additional flange is required for other diameters.
• Flexible hoses for vehicle exhaust extraction (various diameters and lengths) – requires one flange connector and a gear clamp; the hose end is fitted with a nozzle and the hose is suspended using a balancer.

Technical specifications

• Standard segment length: 4 m
• Construction material: aluminium profiles with reinforcements
• Exhaust trolley: standard inlet diameter Ø 160 mm
• Trolley travels between a self-sealing rubber flap
• Segments can be connected to form extended movable extraction systems
• Designed to move one or two fume extraction sets between emission sources
• Intended applications: manual and automatic welding, machining, automotive exhaust extraction in vehicle repair facilities
• Trolley compatible with Oskar fume extraction arms or hose drops (elastic hose, nozzle and balancer)
• Direct mounting for 6"/160 mm fume arms; additional flange required for other arm diameters
• For vehicle exhaust hoses: requires one flange connector and a gear clamp; hose end fitted with nozzle; suspend using a balancer
