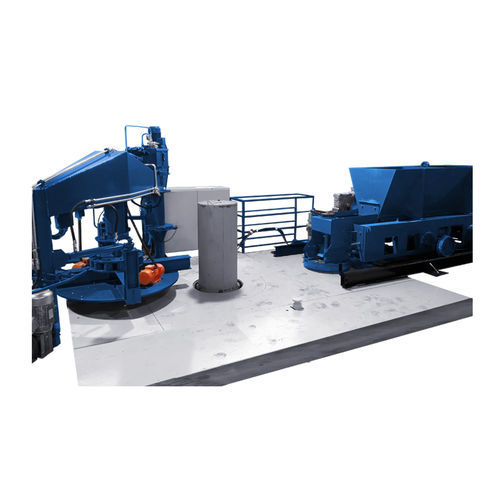

Concrete pipe making machine C-1200

automaticconstruction

C-1200 Concrete pipe machine produces concrete pipes diameter from 300-1200mm by vibrating of core. Equipment for manufacturing concrete pipes is placed in concrete base built according to manufacturer’s layout. Forming head for concrete pipes, electric and hydraulic controls are placed above surface. Filling mold with concrete is performed with automatic concrete feeder unit or by belt conveyor from concrete mixer, depend on configuration of concrete pipe manufacturing line. All operations are semi-automatic or automatic, depend on equipment configuration. Wet concrete pipes are driven manually away with special cart or by chain conveyor, depend on equipment configuration. Main Features Concrete pipe diameter from 200mm up to 1200mm Concrete pipe height maximum: 1 meter Installed power: 25 kW / 380 V Simultaneously maximum: 15 kW Semi-Automatic working mode / Automatic working mode
