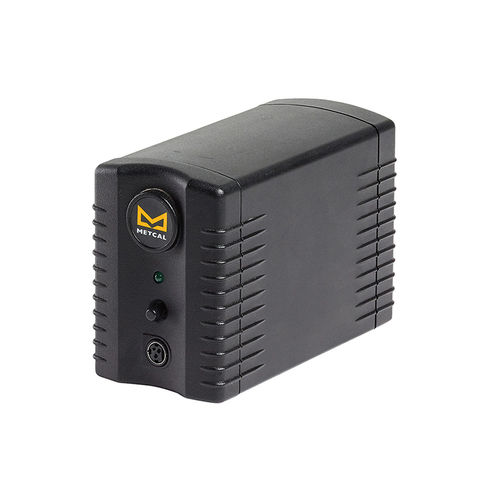

Soldering station PS-900-SOLAR

The PS-900 packs power and provides exceptional thermal control into a small benchtop footprint designed specifically for solar cell production. Superior phot voltaic tab and buss soldering. Smart Heat reduces thermal stresses on the solar cells to reduce the likelihood of micro-cracking. Ultimately produces a controlled, high quality solder joint. Input Line Voltage: - 100 - 240 VAC, grounded circuit, 50/60 Hz Output Power: - Variable, 60 W max.* Output Frequency: - 450 KHz Heating Method: - Induction, smartHeatR Connections: - Single Port Power Supply Dim. W x D x H: - 80 x 160 x 115 mm (3.1" x 6.3" x 4.5") Power Supply Weight: - 1.4 Certification / Marking: - cTUVus, CE Tip-to- Ground Potential: - < 2 mV Tip-to-Ground Resistance: - < 2 Ohm Ground Detection: - Permanent Surface Resistivity: - 105 - 109 Ohm Idle Temperature Stability: - 1.1 °C ( 2 °F) in still air Tip Temperature Accuracy: - Meets or exceeds IPC J-STD-001 Standard Power Cord Length: - 183 cm, 18/3 SJT Warranty: - 1 year Ambient Operating Temp: - 10 - 40 °C (50 - 104 °F) Max. Enclosure Temp: - 55 °C (131 °F) SmartHeat® temperature control Ergonomic, lightweight handle Rugged cast aluminum housing Added plating thickness to tips Low cost, quick-change heater coil PS-PW900 : Power Supply PS-900-PC9: Hand-piece with 9' long cord with Coil Assembly STV-DRH440A: 4 mm Hoof Tip WS2-NS: Workstand AC-CP2 : Tip Removal Pad
