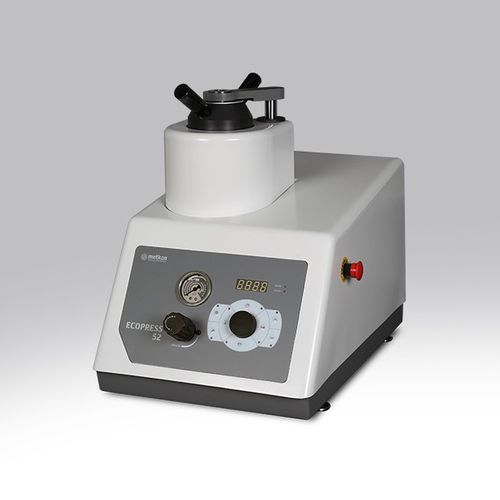

Automatic mounting press ECOPRESS 52

hothydraulic

ECOPRESS 52 is a cost effective automatic digital mounting press with hydraulic pressure ( requires no air ). It is fully automatic and suitable for all current hot mounting materials used in materialography. User friendly touch - pad controls for mounting parameters provide high productivity with last parameter settings being retained in the memory. Simply place the sample and the mounting powder in the cylinder and close the mold closure. Set the “Molding Temperature”, “Heating Time”, ”Cooling Time” and “Pressure” by using the user friendly knob then press the “Start” key. Pressure, heating and cooling are automatically controlled and the total cycle time for a complete cool mount takes 7 to 9 minutes. The actual heating temperature and the heating time are digitally displayed throughout the moulding cycle. The last parameter settings are always retained in the memory. An audible signal notifies the operator when the process is completed. Technical Specifications • Max. Pressure, bar : 300 • Max. Temperature, C : 200 • Heating Power, W : 1650 • Water Cooling : Yes • Slow Cooling : Yes • Operation : Automatic/Hydraulic • Display : Digital Display • Mould Assembly, mm : 25-50 • Size W x D x H, (cm) : 36 x 55 x 48 • Weight, (kg) : 37
