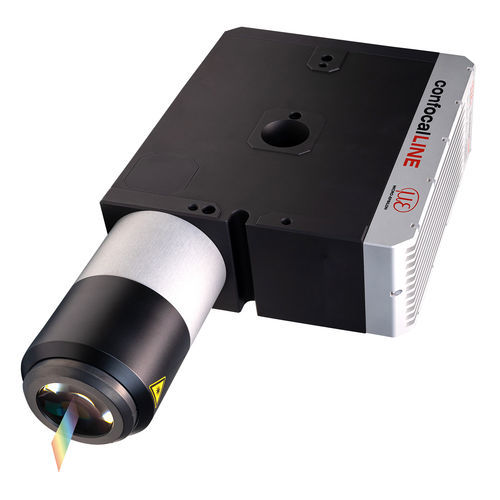

Confocal line sensor confocalLINE CLI8500

digital outputindustrialhigh-resolution

The new confocalLINE sensors enable high-precision scans with maximum point density and high speed. They reliably measure a wide range of surfaces and provide precise 3D data for demanding measurement tasks in semiconductor production, electronics manufacturing and precision engineering. Thanks to integrated SMART evaluation and modern fieldbus interfaces, complex measurement and inspection tasks can be solved directly in the sensor - fast, stable and highly precise.

Characteristics

• High-precision scans with 2,624 points/profile
• Very high signal stability on numerous surfaces
• Micrometer precision for reliable detection of the finest details
• Compact sensor design with integrated data processing
• 2D profile measurement & 3D geometry measurement
• Direct output of measurement data via fieldbus and Modbus (UDP/TCP)
