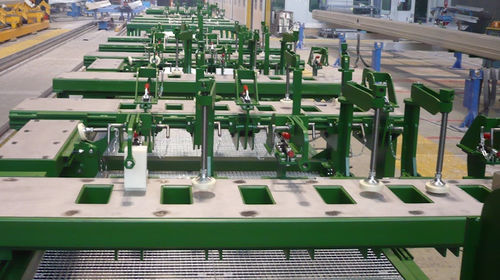

Automatic welding machine

In this customer-specific welding device, two side walls of approx. 20 m each can be positioned on behind the other. The side walls welded together from aluminium profiles are completed with prefabricated door parts or assembly groups. All supporting frames can be moved and locked in y-direction over the entire length of the device. Thus, a new configuration of the device is possible so that other sidewall types can also be processed at short notice. The positioning is done in the straight contour area. The supports provide the required flatness without complex readjustment procedures. After positioning the side walls, the clamping elements are positioned and fixed out of the hanging position above the side wall. Assembly groups of the special device • base frame with lateral rail and working platform made of grids • 8 individual stands with 2 horizontal spindles each for pre-tensioning • 4 double stands with intermediate platform Technical data All data can be adjusted according to customer`s or application-specific requirements Dimensions: • Length : 40.000 mm • Width : 2.330 mm • Hight : 1.030 mm Benefits/ advantages • applicable for different types of side walls • short changeover and set-up times • high repeat accuracy • high process reliability
