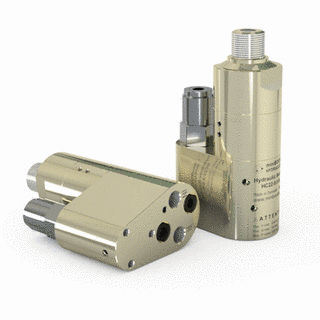

Oil pressure intensifier HC22

oil pressure intensifier
oil pressure intensifier
Add to favorites
Compare this product


Characteristics

Options
for oil
Pressure

Min.: 20 bar (290 psi)

Max.: 207 bar (3,002 psi)

Flow rate

Min.: 8 l/min (2 us gal/min)

Max.: 15 l/min (4 us gal/min)

Description

Description The HC22 is a compact unit weighing only 2.3 kg. It is ideal for use in a variety of applications where building and maintaining high pressure is required. The HC22 raises supplied pressure to a higher outlet pressure and automatically compensates for oil consumption to maintain the high pressure. The HC22 incorporates a Pressure Reducing Valve (PRV) to control inlet pressure to the booster section, and an optional orifice to reduce inlet flow to the maximum allowed for the intensification ratio selected. The integrated Pressure Reducing Valve (PRV) protects both booster and high-pressure tool against too high pressure. It secures a stable high pressure regardless of changes in the tank line pressure. Functions The basic operation is illustrated in the function diagram. Oil is fed through the directional valve (in the customer system) to the IN port, flowing freely through the PRV (pos. 5) and the internal check valves to the high-pressure side H. In this condition maximum flow through the booster is achieved giving a fast-forward function. When pump pressure is reached on the high-pressure side H, the internal check valves will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when end pressure on the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.
