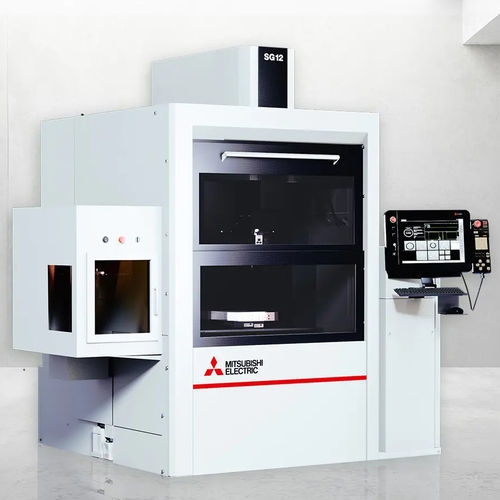

Die sinking electrical discharge machine SG-R series

high-accuracycompactCNC

The rock-solid machine base of the SG series is your assurance of precision and durability. The choice of high-class components ensures the long-term reliability of the machine system. The simplicity of the control and the programming itself – a hallmark of EDMs by Mitsubishi Electric – allows the operator to focus on the essential, i.e. the proper planning of the various eroding tasks. And here, too, this is aided by the intelligent control strategy with integrated job planning and an efficient evaluation of a wide range of operating data, including actual job costing. The full standard equipment of the SG-R completes the package. A fire extinguishing system, C axis with a zero-point clamping tool, external programming software – all this is part of the standard equipment. Additional useful features enable you to tailor the configuration to your individual requirements. The GV generator is designed for a wide range of applications. Highest performance at lowest electrode wear with graphite electrodes is possible as well as the formation of filigree details and high surface qualities with copper. The generator is just as suitable for machining hard metals as it is for machining titanium and many other materials. Acceleration of up to 1.6 G and travel speeds of up to 20 m/min enabled by the modern drive unit of the Z axis. The in-house AI technology uses the advantages of these values perfectly. Inclusive of safety: collision protection in all axes. Rock-solid machine build, exactly as it should be. Sophisticated, cleaned up and absolutely durable. These principles are well proven for decades and will be casted into each and every new machine.
