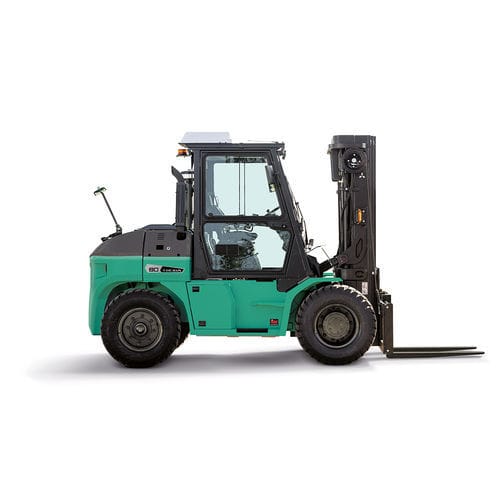

Diesel forklift truck FD60-100N3 Series
diesel engineride-oncounterbalanced

diesel forklift truck
diesel forklift truck
diesel forklift truck
diesel forklift truck
diesel forklift truck
diesel forklift truck
diesel forklift truck
diesel forklift truck
diesel forklift truck
Add to favorites
Compare this product


Characteristics

Motor type
diesel, diesel engine
Operator
ride-on
Other characteristics
4-wheel, counterbalanced, heavy-duty, low-noise
Carrying capacity

6,000 kg, 7,000 kg, 8,000 kg, 10,000 kg
(13,227.7 lb, 15,432.4 lb, 17,637 lb, 22,046.2 lb)

Lifting height

3,000 mm
(118.11 in)

Overall width

2,005 mm, 2,175 mm, 2,245 mm
(78.9 in, 85.6 in, 88.4 in)

Overall length

4,805 mm, 4,875 mm, 5,245 mm, 5,485 mm
(189.2 in, 191.9 in, 206.5 in, 215.9 in)

Load center distance

615 mm, 715 mm
(24.2 in, 28.1 in)

Weight without load

8,670 kg, 9,540 kg, 11,510 kg, 12,910 kg
(19,114.1 lb, 21,032.1 lb, 25,375.2 lb, 28,461.7 lb)

Axle loading with maximum load front

13,030 kg, 14,640 kg, 17,360 kg, 20,660 kg
(28,726.2 lb, 32,275.7 lb, 38,272.2 lb, 45,547.5 lb)

Axle loading with maximum load rear

1,640 kg, 1,900 kg, 2,150 kg, 2,250 kg
(3,615.6 lb, 4,188.8 lb, 4,739.9 lb, 4,960.4 lb)

Axle loading without load front

3,860 kg, 3,910 kg, 5,140 kg, 5,980 kg
(8,509.8 lb, 8,620.1 lb, 11,331.8 lb, 13,183.6 lb)

Axle loading without load rear

4,810 kg, 6,370 kg, 6,930 kg
(10,604.2 lb, 14,043.4 lb, 15,278 lb)

Height of mast when lowered

2,500 mm, 2,800 mm, 2,850 mm
(98.4 in, 110.2 in, 112.2 in)

Free lift

205 mm, 215 mm
(8.1 in, 8.5 in)

Overall height with mast raised

4,330 mm, 4,420 mm
(170.5 in, 174 in)

Height to top of overhead guard

2,550 mm, 2,660 mm
(100.4 in, 104.7 in)

Seat height

1,470 mm, 1,570 mm
(57.9 in, 61.8 in)

Tow couplig height

520 mm, 590 mm, 600 mm
(20.5 in, 23.2 in, 23.6 in)

Length to fork face

3,585 mm, 3,655 mm, 4,025 mm, 4,265 mm
(141.1 in, 143.9 in, 158.5 in, 167.9 in)

Fork carriage width

1,845 mm, 2,015 mm, 2,208 mm
(72.6 in, 79.3 in, 86.9 in)

Ground clearance under mast with load

200 mm, 240 mm
(7.9 in, 9.4 in)

Ground clearance at center of wheelbase with load

225 mm, 290 mm
(8.9 in, 11.4 in)

Turning circle radius

3,400 mm, 3,460 mm, 3,710 mm, 3,950 mm
(133.9 in, 136.2 in, 146.1 in, 155.5 in)

Minimum distance between centres of rotation

1,255 mm, 1,290 mm, 1,475 mm
(49.4 in, 50.8 in, 58.1 in)

Travel speed

24 km/h, 25 km/h, 27 km/h, 28 km/h
(14.9 mph, 15.5 mph, 16.8 mph, 17.4 mph)

Lifting speed

Min.: 0.4 m/s
(1.312 ft/s)

Max.: 0.6 m/s
(1.969 ft/s)

Rated drawbar pull

Min.: 31,400 N

Max.: 63,700 N

Gradeability

20 %, 21 %, 25 %, 28 %

Rated output

81 kW
(110.1 hp)

Rated speed

2,400 rpm
(15,079.6 rad.min-1)

Cubic capacity

3,769 cm³, 37,695 cm³
(127.4 US fl oz, 1,274.6 US fl oz)

Maximum operating pressure

206 bar
(2,987.8 psi)

Noise level

86 dB

Description

Built for even the most challenging environments, TREXiA ES is a heavy-duty diesel counterbalance that deals with tough situations with the reliability you expect from Mitsubishi Forklift Trucks. Best-in-class travel speeds of 27 km/h are possible thanks to a 3.8 L four-cylinder common rail turbo diesel engine fully compliant with Stage V Euro emissions regulations. It delivers up to 81 kW (110 HP) of power for high productivity, low noise and low fuel consumption. TREXiA ES has market-leading views of the load and forktips, with exceptional all-round visibility thanks to a ClearView mast and low counterweight design. These all help operators to work easier and safer. Despite its size, the range is precise and agile and offers operators effortless performance and comfortable ergonomic controls, reducing fatigue throughout long shifts. Exceptional all-round visibility Designed with a ClearView mast with market-leading fork tip visibility and a low counterweight for safer operations Class-leading travel speeds Powerful four-cylinder common rail turbo diesel stage V engine allows for speeds up to 27 km/h Spacious operator compartment Built to accommodate a wide range of operator sizes, the TREXiA cabin in comfortable, ergonomic and highly optimised Integrated Presence System (IPS) Integrated Presence System (IPS)A wide range of features including parking brake alarm and warning light work together to make TREXiA safer to operate Low-noise design At 86 dBA, this is among the lowest in its class and helps keep the operator comfortable during shifts
