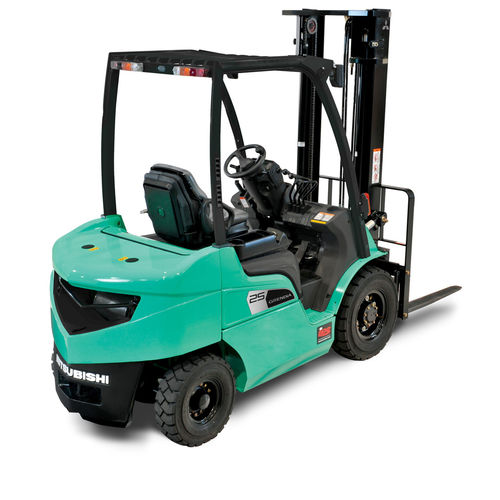

Diesel forklift FD20-35N3 series
ride-onindustrialhandling

diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Operator
ride-on
Applications
handling, industrial, precision
Other characteristics
4-wheel, counterbalanced, low-noise
Carrying capacity

2,000 kg, 2,500 kg, 3,000 kg, 3,500 kg
(4,409.2 lb, 5,511.6 lb, 6,613.9 lb, 7,716.2 lb)

Lifting height

3,270 mm, 3,300 mm
(128.74 in, 129.92 in)

Overall width

1,150 mm, 1,275 mm, 1,290 mm, 1,640 mm, 1,690 mm
(45.3 in, 50.2 in, 50.8 in, 64.6 in, 66.5 in)

Overall length

3,555 mm, 3,630 mm, 3,805 mm, 3,865 mm
(140 in, 142.9 in, 149.8 in, 152.2 in)

Load center distance

500 mm
(19.7 in)

Weight without load

3,460 kg, 3,760 kg, 4,430 kg, 4,820 kg
(7,628 lb, 8,289.4 lb, 9,766.5 lb, 10,626.3 lb)

Axle loading with maximum load front

4,670 kg, 5,460 kg, 6,530 kg, 7,240 kg
(10,295.6 lb, 12,037.2 lb, 14,396.2 lb, 15,961.5 lb)

Axle loading with maximum load rear

790 kg, 800 kg, 900 kg, 1,080 kg
(1,741.7 lb, 1,763.7 lb, 1,984.2 lb, 2,381 lb)

Axle loading without load front

1,460 kg, 1,470 kg, 1,700 kg, 1,780 kg
(3,218.7 lb, 3,240.8 lb, 3,747.9 lb, 3,924.2 lb)

Axle loading without load rear

1,990 kg, 2,300 kg, 2,650 kg, 3,120 kg
(4,387.2 lb, 5,070.6 lb, 5,842.2 lb, 6,878.4 lb)

Track width front

960 mm, 1,060 mm
(37.8 in, 41.7 in)

Track width rear

980 mm
(38.6 in)

Height of mast when lowered

2,150 mm, 2,170 mm, 2,300 mm
(84.6 in, 85.4 in, 90.6 in)

Free lift

140 mm, 145 mm
(5.5 in, 5.7 in)

Overall height with mast raised

4,330 mm, 4,355 mm, 4,360 mm
(170.5 in, 171.5 in, 171.7 in)

Height to top of overhead guard

2,145 mm, 2,165 mm, 2,175 mm
(84.4 in, 85.2 in, 85.6 in)

Seat height

940 mm, 990 mm
(37 in, 39 in)

Tow couplig height

310 mm, 330 mm, 340 mm
(12.2 in, 13 in, 13.4 in)

Length to fork face

2,485 mm, 2,560 mm, 2,735 mm, 2,795 mm
(97.8 in, 100.8 in, 107.7 in, 110 in)

Fork carriage width

1,000 mm
(39.4 in)

Ground clearance under mast with load

115 mm, 135 mm, 150 mm
(4.5 in, 5.3 in, 5.9 in)

Ground clearance at center of wheelbase with load

135 mm, 165 mm, 170 mm
(5.3 in, 6.5 in, 6.7 in)

Turning circle radius

2,200 mm, 2,230 mm, 2,380 mm, 2,440 mm
(86.6 in, 87.8 in, 93.7 in, 96.1 in)

Minimum distance between centres of rotation

715 mm, 780 mm
(28.1 in, 30.7 in)

Travel speed

16 km/h, 16.5 km/h, 17 km/h, 17.5 km/h, 18 km/h
(9.9 mph, 10.3 mph, 10.6 mph, 10.9 mph, 11.2 mph)

Lifting speed

0.4 m/s, 0.5 m/s, 0.6 m/s
(1.312 ft/s, 1.64 ft/s, 1.969 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Rated drawbar pull

Max.: 16,200 N

Min.: 14,800 N

Gradeability

18 %, 22 %, 27 %, 31 %

Rated output

36 kW
(48.9 hp)

Rated speed

2,250 rpm
(14,137.2 rad.min-1)

Cubic capacity

3,331 cm³
(112.6 US fl oz)

Maximum operating pressure

90 bar
(1,305.3 psi)

Oil flow

73 l/min, 75 l/min
(19.3 us gal/min, 19.8 us gal/min)

Noise level

78 dB

Description

Developed to help your operator achieve maximum productivity, while minimising running costs, GRENDiA ES sets the highest standards for IC engine counterbalance forklift trucks. With its exceptional fuel economy, durable components and low-maintenance design, GRENDiA makes perfect business sense. What's more, it comes with a package of advanced features, fitted as standard, that offers true value for money. Fast, stable and exceptionally powerful, GRENDiA forklift trucks offer a potent combination of high efficiency, low emissions and very low noise levels. To that, Mitsubishi Forklift Trucks has added a host of ergonomic features to maximise comfort, control and precision. The result is a forklift that can be relied upon to deliver top performance, whatever the application, whatever the conditions. Integrated Presence System (IPS2) Increases safety by isolating hydraulic and drive functions when operator not present for 2 seconds or longer. PIN-access as standard prevents misuse by unauthorised operators. Vehicle control module This high-power 'brain' allows multiple engine and electronic functions to occur simultaneously, constantly adjusting and optimising performance: ensuring industry-leading power and fuel consumption. Sealed chassis with full belly guard and inner wheel covers Complete sealing of underside reduces risk of damage from foreign objects, such as shrinkwrap, entering engine compartment. It also reduces noise and eliminates safety issues caused by airborne dust particles. Sophisticated Euro Emissions stage V compliant diesel engine This modern, industrial design is tuned to provide maximum torque at low RPM.
